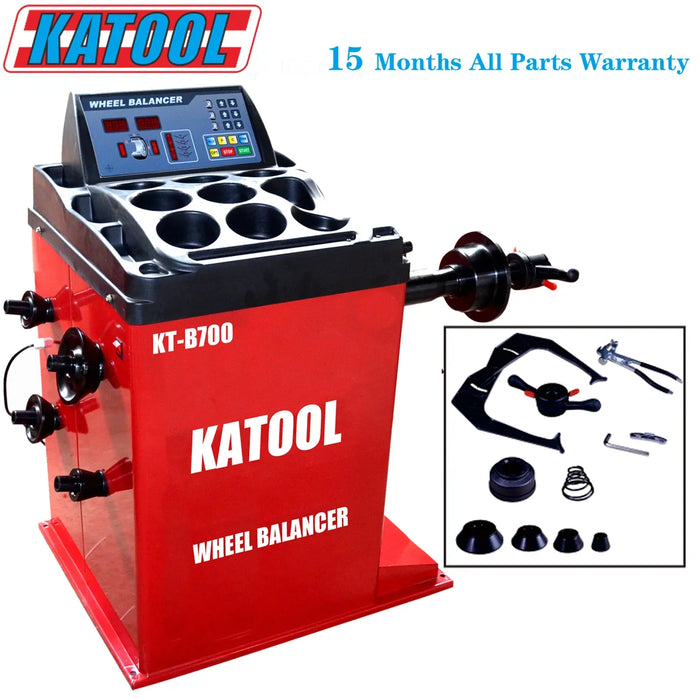

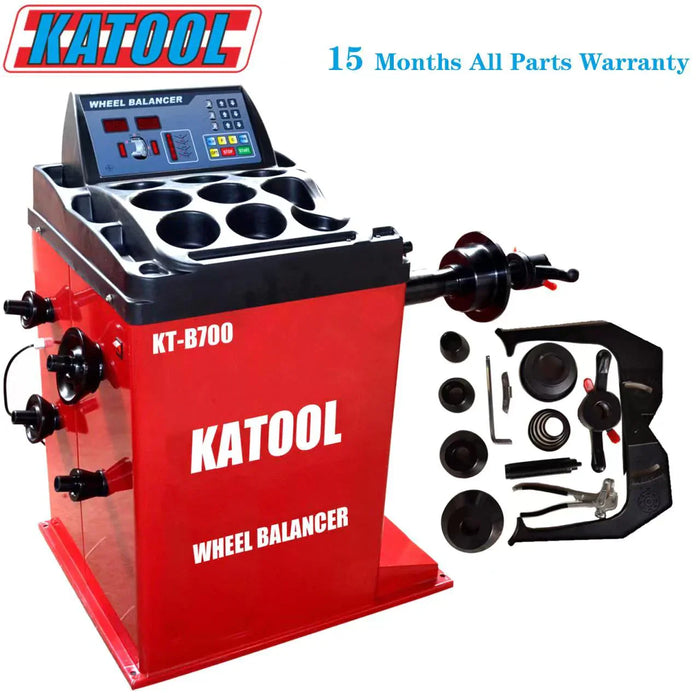

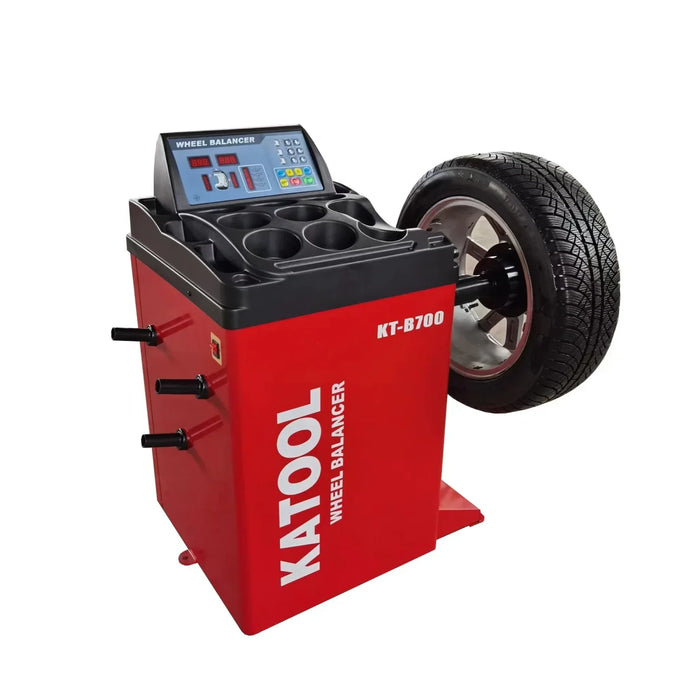

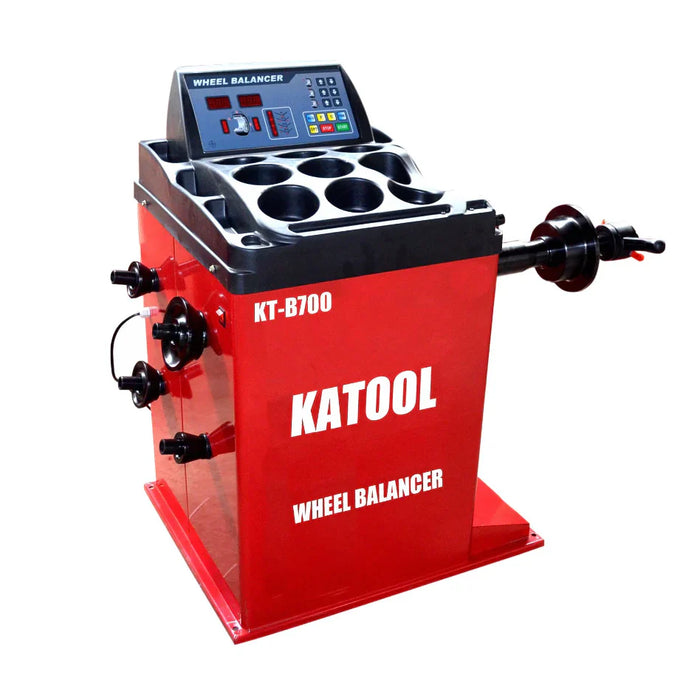

The Katool KT-B700 Wheel Balancer is a great solution for precise and efficient wheel balancing. The body is crafted from 3mm-thick high-strength steel, featuring solid welding to ensure minimal vibration. The all-in-one pressure sensor support design incorporates 8mm thick bottom and side boards, ensuring stable and precise sensor performance. Equipped with a top-level motor and pure copper winding, it delivers enhanced power, faster heat dissipation, a lower defect rate, and an extended usage life. The 36mm shaft thread undergoes quenching treatment for added strength. The computer board utilizes advanced welding technology, making it moisture-proof, dust-proof, and antistatic. Offering various balance modes for different rim types, it provides unparalleled precision. The built-in fault diagnosis and self-calibration program with double side calibration eliminates preset parameters, offering user-friendly operation. Unit selection options (Ounce/Gram, MM/Inch) provide flexibility. The high-quality integration power board ensures stable and reliable performance. Optionally available is a wheel guard for added safety, and the longer shaft is compatible with wider wheels.
Features

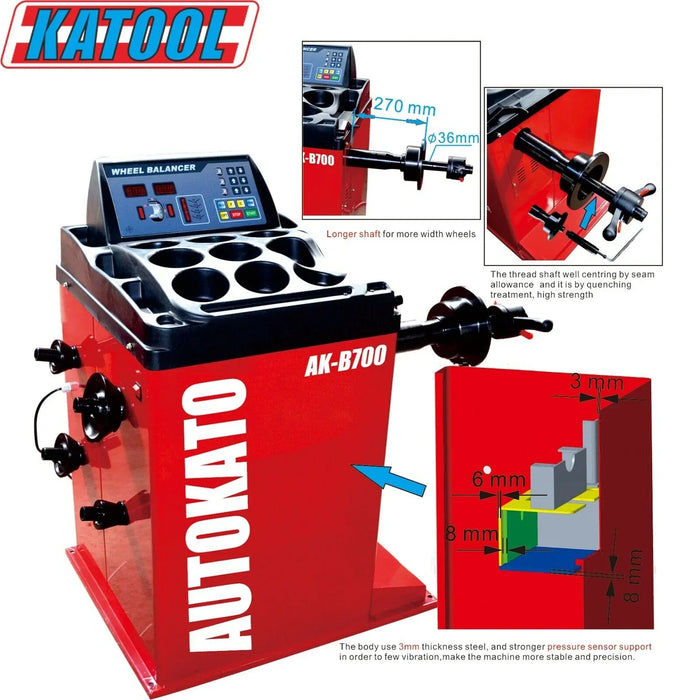

- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

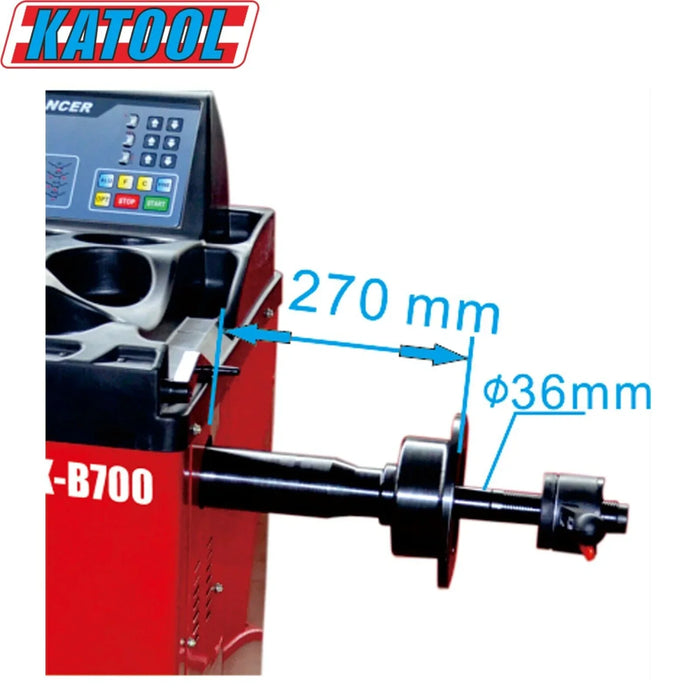

- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable

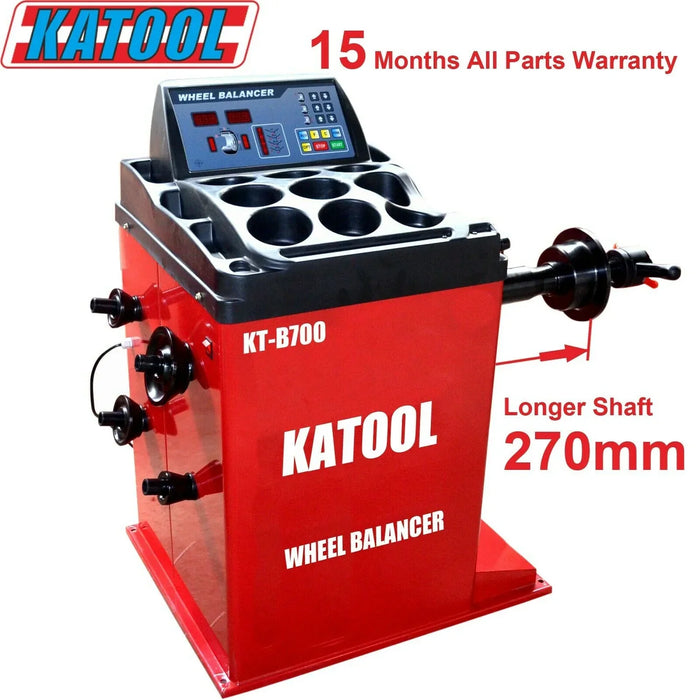

- Longer shaft also compatible with wider wheels
Specifications
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
±1g |
| Measuring Time: |
7S |
