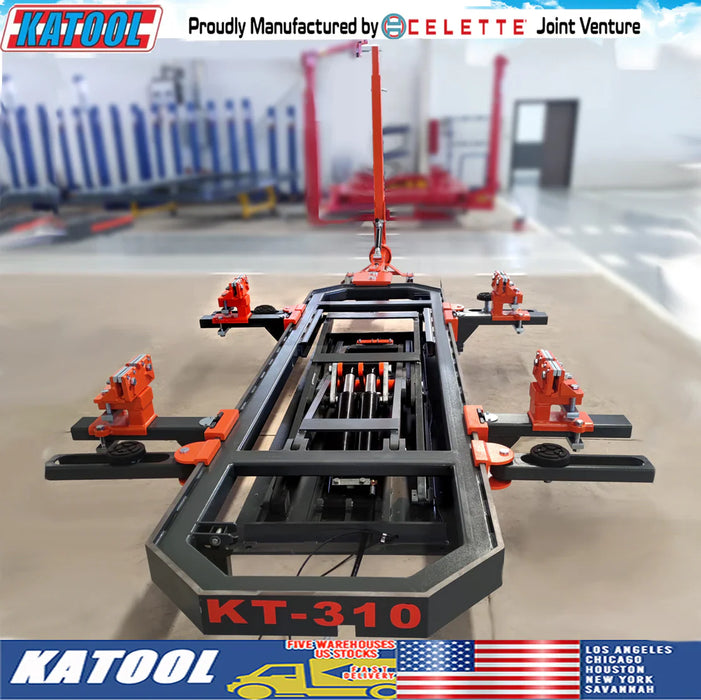

Katool KT-310 Auto Body Frame Machine

Katool  | Authorized Dealer  |  SKU: KT-310
Original price $0
Original price $6,200.00 - Original price $6,200.00
Original price
Current price $6,200.00
$6,200.00 - $6,200.00
Current price $6,200.00

Buy Online Or Call Now To Order!
Manufacturer Warranty Included - on all Katool
Questions? - Call (812) 359-1112

 More payment options

The Katool KT-310 - the small bench welded made of cold high alloy rectangular tubes is designed professionally for body collision quick repair. It's built with upgraded materials, improved welding technique, and enhanced stress intensity to make the repairing work more precise and faster. In accordance with European advanced technology, the frame machine is simple, practical, safe and precise for fast repairs.

Features

  • CE certified
  • 110mm drive on height
  • Flexible moving tower, quick fixing, and wide working area, durable pulling power with 60KN
  • 9-grade locking system to reach different heights

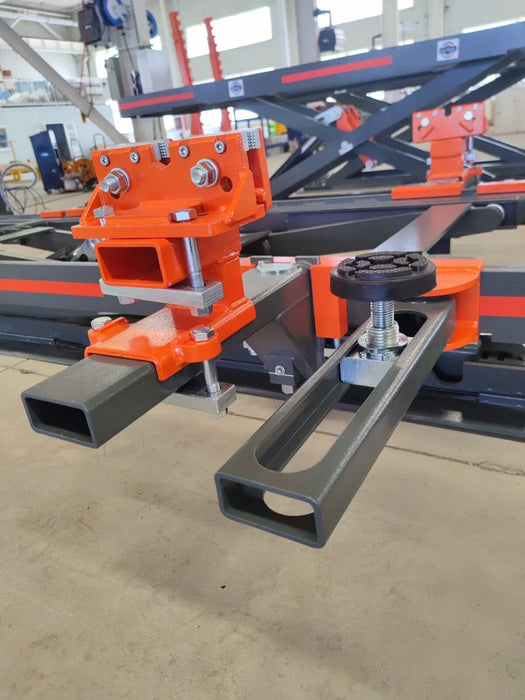

  • Special design for jaws: quick fixed clamp jaws with only two screws

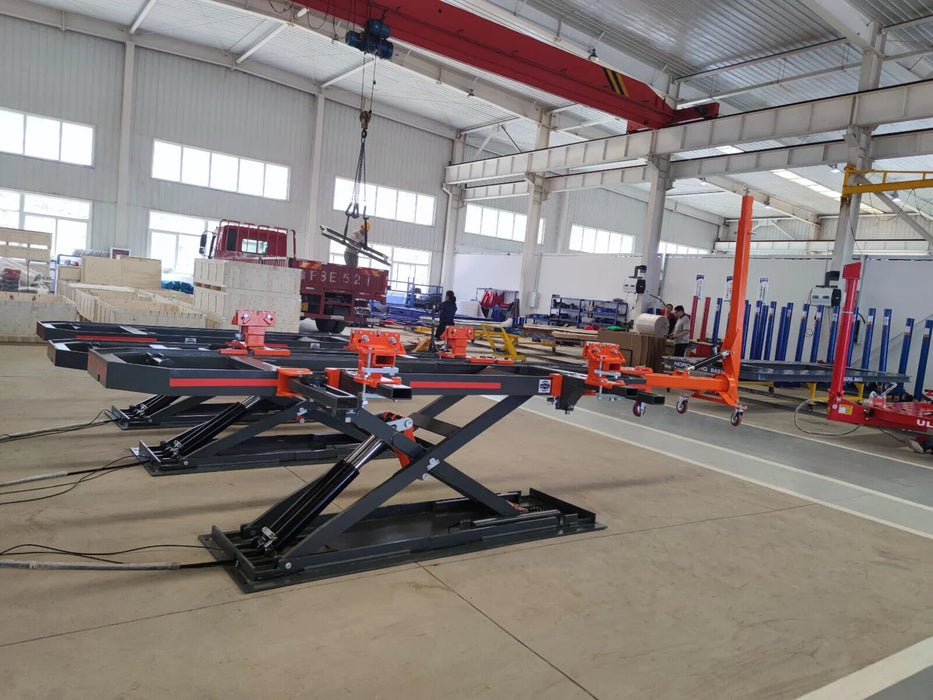

  • Four adjustable lifting arms can rotate 180 degrees when the bench is used as a scissor lift, which is designed to lift nearly all kinds of vehicles
  • Equipped with bench supporter to find the exact height to install the pulling towers
  • Adjustable heavy-duty main clamps are easy to install and remove
  • Fast repair for small and medium ve­hicles. The model helps save valuable space in shops and is low-cost

          Specifications

          Frame Length 130.8 Inch
          Frame Width 34.5 Inch
          Frame Height 4.3 to 67 Inch
          Max Push Power for Pulling Tower 60KN
          Rated Voltage 220V
          Working Range of Pulling Tower 360 Degrees
          Max Load Bearing 7000 lbs (CE Certified)

          Warranty

          Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

          A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

          Warranty Includes:
          - Cylinders, power units, motors, displays, electronics, etc.
          - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

          Warranty Conditions:
          - Claims must fall within the warranty period.
          - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
          - Replacement parts will be provided at no cost, including free shipping.

          Note:
          - All warranty claims are subject to approval by the warranty/service department.
          - Photos and/or videos of defects may be requested.
          - Do not disassemble any equipment before the issue is determined.
          - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
          - Labor is not included in the warranty.
