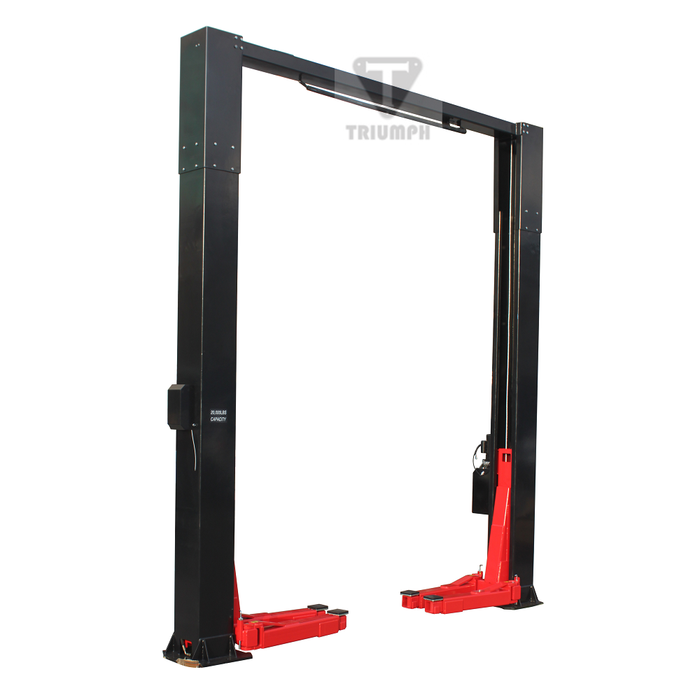

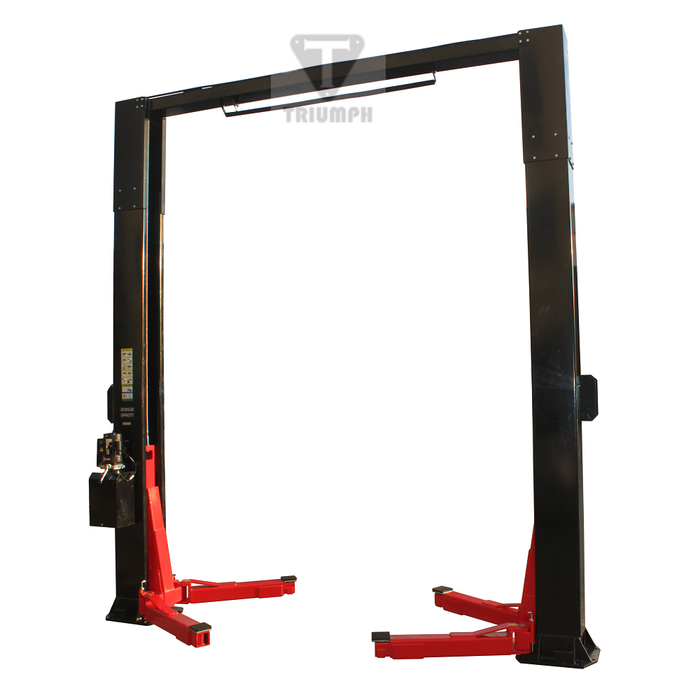

NTO-20S 20,000 lb Two Post Auto Lift
Free shipping to the lower 48 United States!
Triumph 20,000 LB 2 Post lift come with our standard 1 year parts 5 year structure warranty. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service. ISO 9001 and CE Certified/Compliant. Triumph 20,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum rated 4000 PSI strength. Direct Drive Cylinders, Electrical override automatic safety shut-off, Free mounting hardware, free truck adapters.

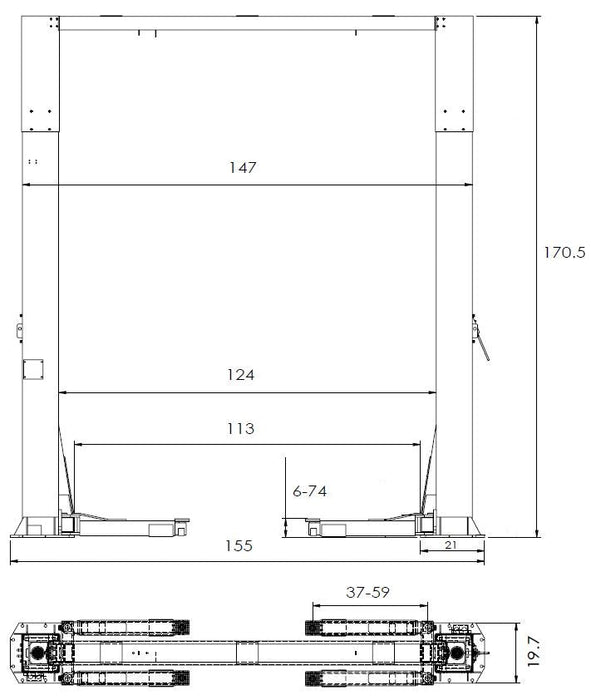

Specifications
| Capacity |
20,000 lbs |
Overall Height |
170.5" |
| Overall Width |
155" |
Lifting Height |
74" |
| Distance Between Posts |
124" |
Drive Thru Width |
113" |
| Lowered Height |
6" |
Base Plate Size |
21x20" |
| Truck Adapters |
Yes |
Lock Release |
Single Point |
| Electric Safety Cutoff |
Yes |
Lift Time |
40 Seconds |
| Voltage |
220 Volt |
Horsepower |
3 HP |
| Concrete |
6" Slab, 4,000 PSI |
Style |
Overhead |
