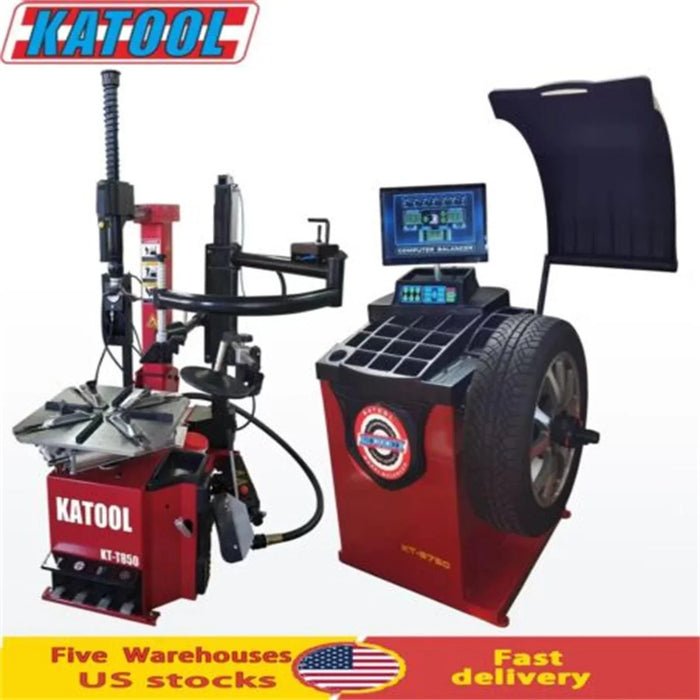

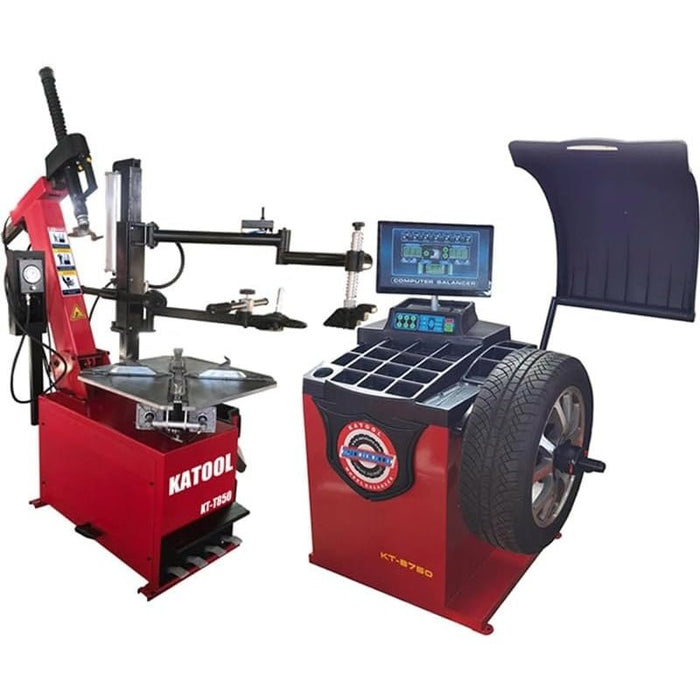

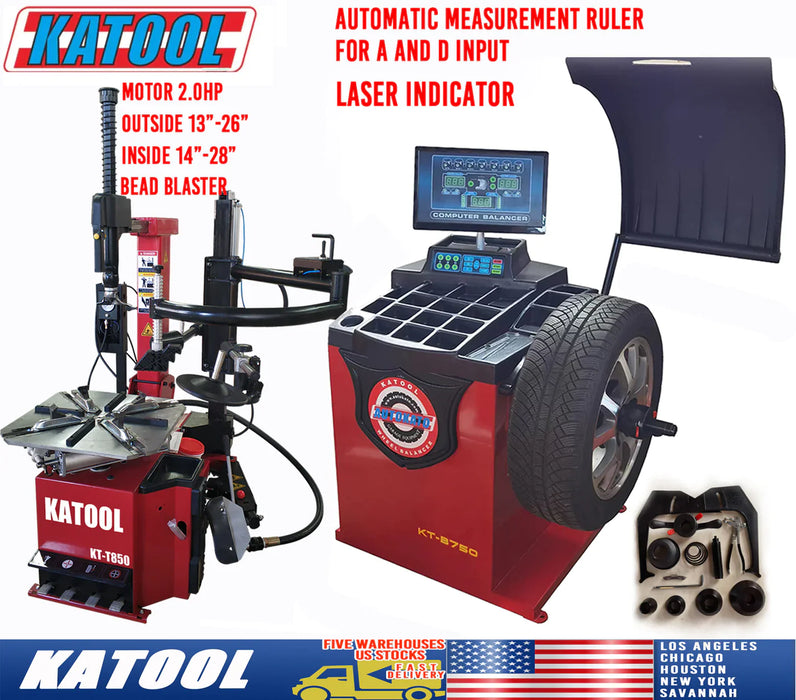

Experience professional tire service with the Katool Tire Changer KT-T850 & Wheel Balancer KT-B750 Combo. The KT-T850 Tilt-Arm Wheel Clamp Tire Changer boasts a strong alloy steel jaw, a stainless steel mounting head, and a pull-type pedal control system. The top-level motor ensures efficiency, supporting a 110V/1ph/2.0HP motor for North America. Equipped with assist arms and a 200mm aluminum bead breaker cylinder, it offers versatility. The KT-B750 Wheel Balancer features an automatic measurement ruler, 3mm-thick steel body, and a top-level motor with various balance modes. With built-in fault diagnosis, self-calibration, and optional features like a wheel guard, it delivers efficient and reliable tire maintenance.
Features

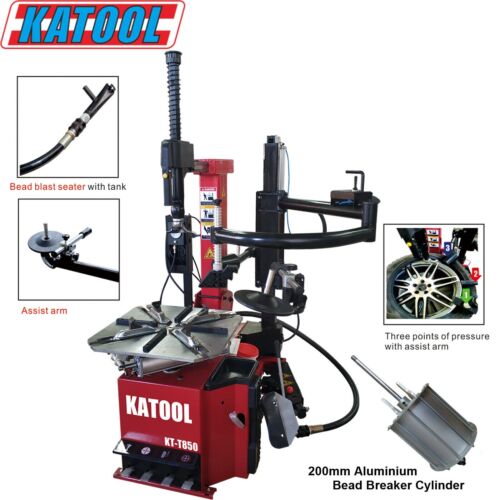

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
- The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
- The high-quality spade cover effectively prevents the rim from being damaged
- Pull type pedal control system, easy for tire changing and maintenance
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life
- The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
- For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
- Equipped with assist arms
- 200mm aluminum bead breaker cylinder

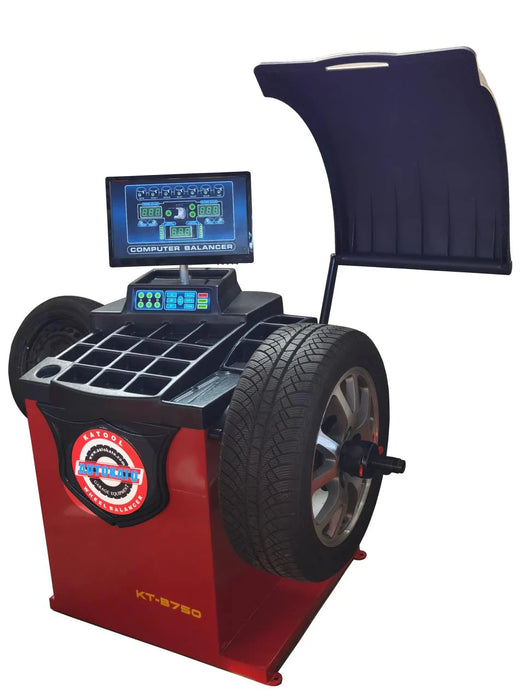

KT-B750 Wheel Balancer
- Automatic measurement ruler for auto input A and D values
- The body use 3mm thickness steel, high strength, solid welding, few vibration
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision
- Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life
- The φ36mm shaft thread is by quenching treatment, high strength
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
- Various balance mode, according different rim for different balance mode, make the balance effect more precision
- Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy
- Unit selection(Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Longer shaft for more width wheels
Specifications
KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine
Max Wheel Diameter :
|
47"/1200mm
|
Max Wheel Width :
|
15"/380mm
|
Outside Clamp:
|
14"-26"
|
Inside Clamp :
|
16"-28"
|
Power Supply:
|
110V 1PH
|
Motor Power:
|
2.0HP/1.5KW
|
Rotation Speed :
|
6.8r/min
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
Net weight :
|
340KG / 750 lbs
|
KT-B750 Wheel Balancer
Rim Diameter:
|
<30"
|
Wheel Width:
|
3"-12"
|
Wheel Diameter:
|
<880mm
|
Balancing Speed:
|
180rpm
|
Power Supply:
|
120V 1PH
|
Motor Power:
|
0.25KW
|
Rim Center Hole Dia.:
|
<135mm
|
Wheel Weight:
|
<65KG
|
Balancing Accuracy:
|
±1g
|
Measuring Time:
|
7S
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
