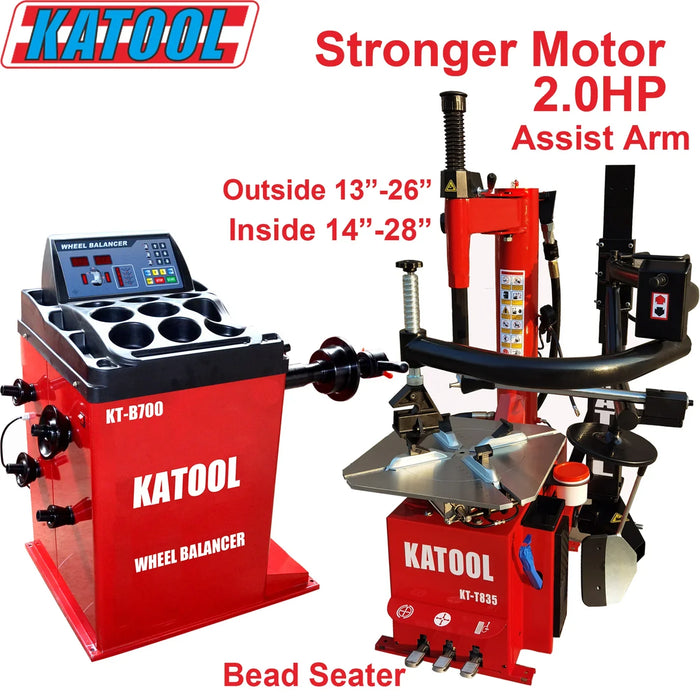

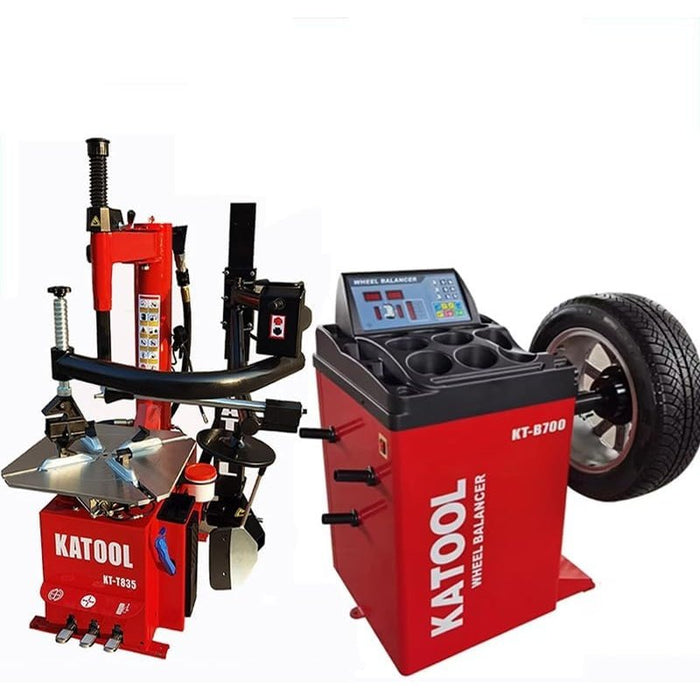

Elevate your tire service with the Katool Tire Changer KT-T835 & Wheel Balancer KT-B700 Combo. The KT-T835 Wheel Clamp Tire Changer features an alloy steel jaw treated for enhanced toughness, along with a stainless mounting head, inflation gauge with pedal control, and double side assist arm for efficient and convenient tire handling. The top-level motor with pure copper winding ensures fast heat dissipation and a longer service life. Paired with the KT-B700 Wheel Balancer, boasting a 3mm-thick steel body and advanced features like an all-in-one pressure sensor, 36mm shaft thread, and various balance modes, this combo delivers precision and reliability. With a closed body design, optional wheel guard, and compatibility with wider wheels, it provides a comprehensive solution for tire maintenance.
Features

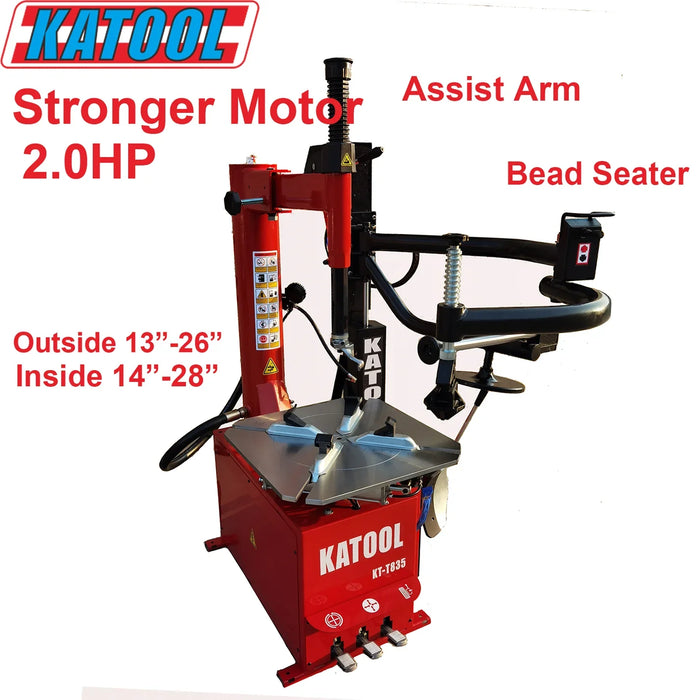

KT-T835 Wheel Clamp Tire Changer Machine

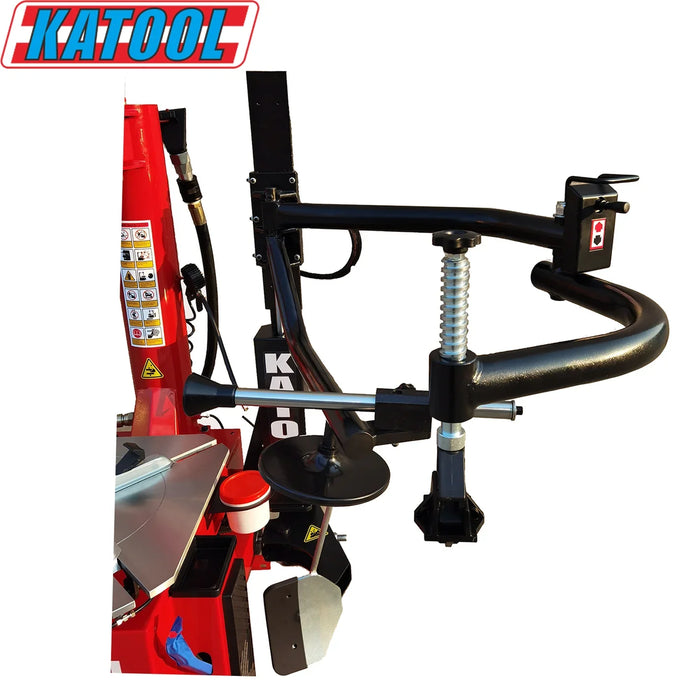

- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
-
Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working
-
Bead blast seater head with post tank
-
φ186mm stainless bead breaker cylinder
- Closed body for protect inside parts

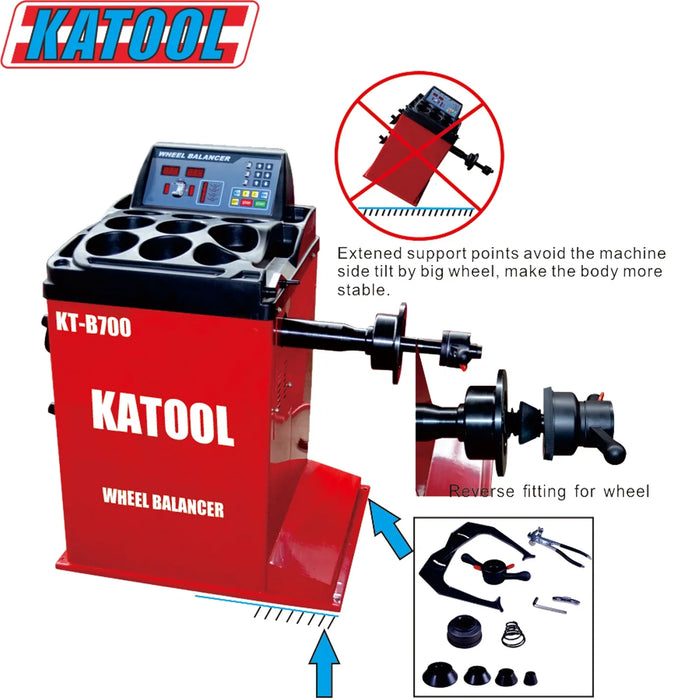

KT-B700 Wheel Balancer

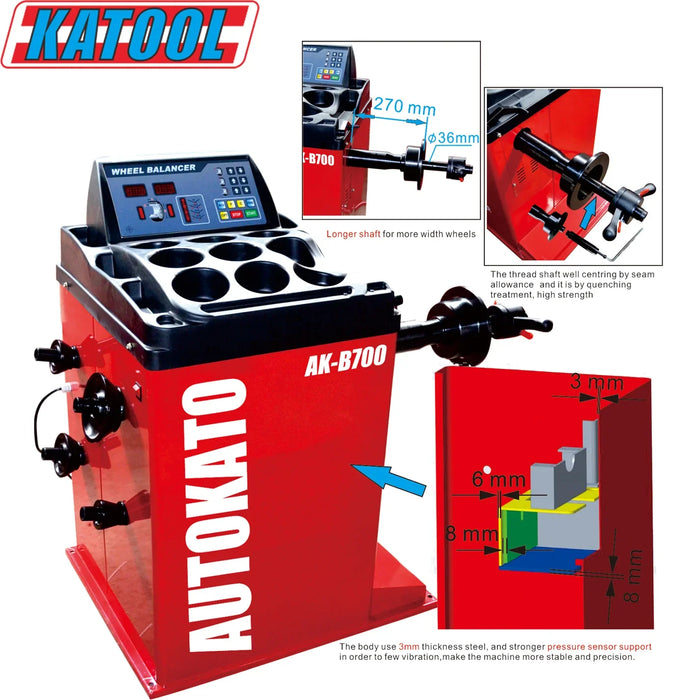

- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

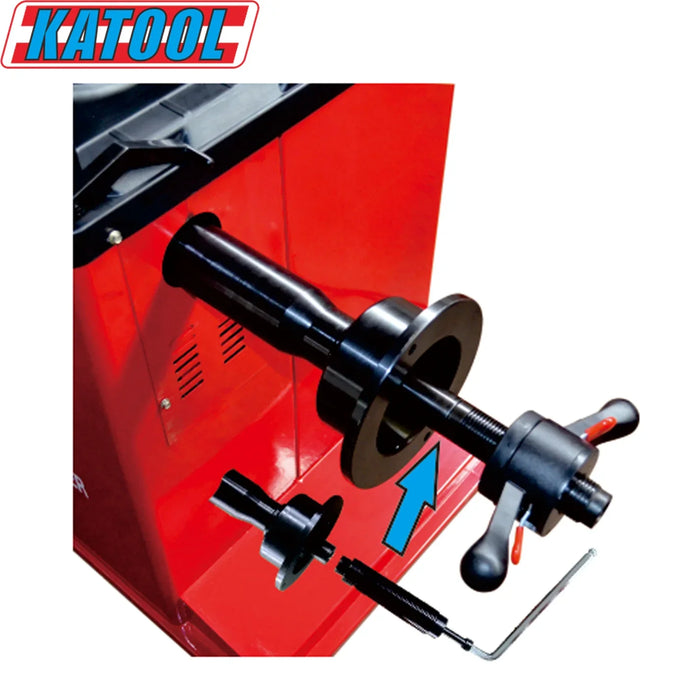

- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Longer shaft also compatible with wider wheels
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/350mm
|
|
Outside Clamp:
|
13"-26"
|
|
Inside Clamp :
|
14"-28"
|
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
582lbs
|
KT-B700 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
120V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
±1g |
| Measuring Time: |
7S |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
Forklifts and Lift Gates:
All Single Post, 2 Post, and 4 Post Lifts* require a forklift or similar equipment to unload. Smaller items like Tire Changers and Balancers qualify for lift gate service at no additional cost. Lift gate service lowers your shipment to street level.
What if I don't have a forklift at my location and my order requires it?
This is a common concern. Here are some alternatives:
- Delivery to a local freight terminal typically located within 30-60 minutes of your address. Contact us, and we will help locate the nearest terminal.
- Ship to a friend's or workplace location equipped with a forklift.
- Warehouse pickup is available depending on how far you're willing to travel.
- Renting a forklift, though less ideal, may be necessary. We schedule deliveries precisely to reduce rental time.
Can I hand unload my order if I don't have a forklift?
Unfortunately, hand unloading is not permitted. Truck drivers do not allow this due to liability issues and limited unloading time, even if ample assistance is available.
How do I know if my order requires a forklift or if a lift gate service is available?
Forklifts or similar equipment are mandatory for unloading car lifts.
Residential Deliveries:
Yes, we deliver to residential addresses!
Will the freight company contact me to schedule the delivery?
Yes, the freight company will reach out in advance to schedule your delivery, ensuring you're prepared to receive and unload your shipment.
Warehouse Pickup (No Freight Charge)
Warehouse pickup is available for nearly all brands.
Freight Terminals:
If you lack forklift access, we can arrange delivery to a nearby freight terminal that will load your order onto your trailer. Terminals are typically a 30-60 minute drive away. Note: Extremely large orders shipped via dedicated flatbeds cannot be delivered to freight terminals. This information will be indicated clearly on the product page.
