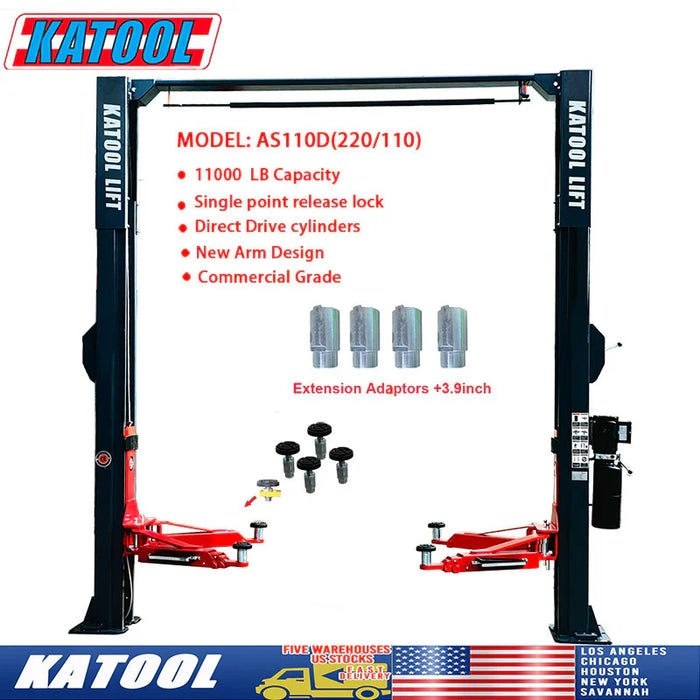

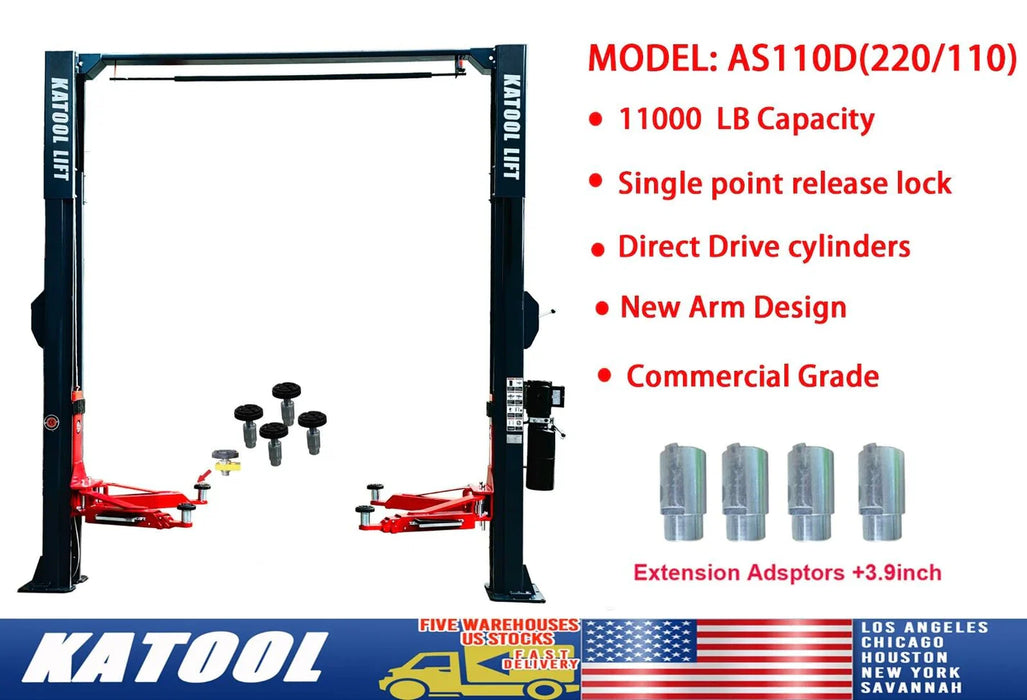

The Katool KT-AS110D Two Post Asymmetrical Vehicle Lift is a powerful and efficient lifting solution with an 11,000 lbs capacity. This lift is CE approved and certified, meeting the 115% dynamic loading capacity standard and passing a rigorous 150% static loading capacity test. Featuring a Single Point Lock Release, it ensures secure and controlled lifting operations. The asymmetric arms and direct drive cylinders provide versatility and efficiency. Rubber pad door opening protection adds an extra layer of care to your vehicle. The lift comes with adjustable extended support adaptor sets ranging from 3.94 inches to 6 inches, catering to various vehicle types. The overhead safety shutoff bar and feet-protection safety guardrails with a toolbox prioritize safety and convenience in your workspace. The high-quality hydraulic system, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH, ensures reliable and efficient lifting.
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
-
11000lbs (4990KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Single Point Lock Release
- Rubber pad door opening protection
- Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.
- Overhead safety shutoff bar
- Feet-protection safety guardrails with toolbox
- High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional)

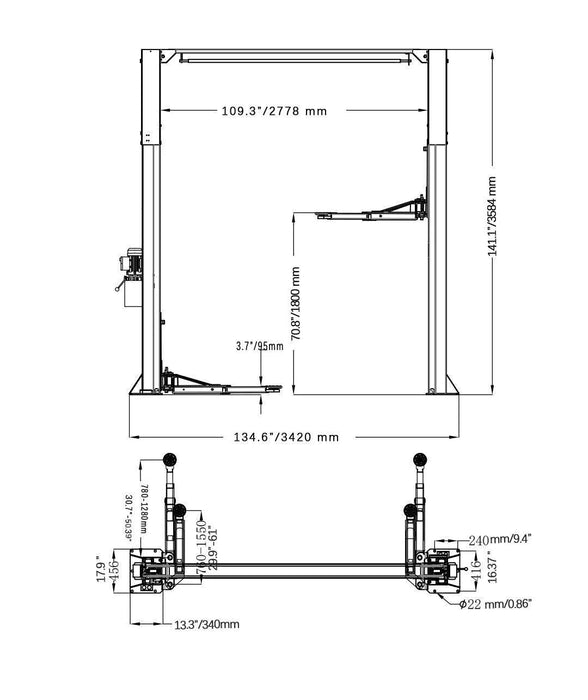

Specifications
Lifting Capacity |
11000 lbs. (4990KG ) |
Max. Lifting Height |
70.75" / 1800mm |
Min. Height |
3.74" / 95mm |
Height Overall |
141.25" / 3587mm |
Width Overall |
134.65" / 3420mm |
Outside Columns |
120.4" / 3058mm |
Inside Columns |
109.37" / 2778mm |

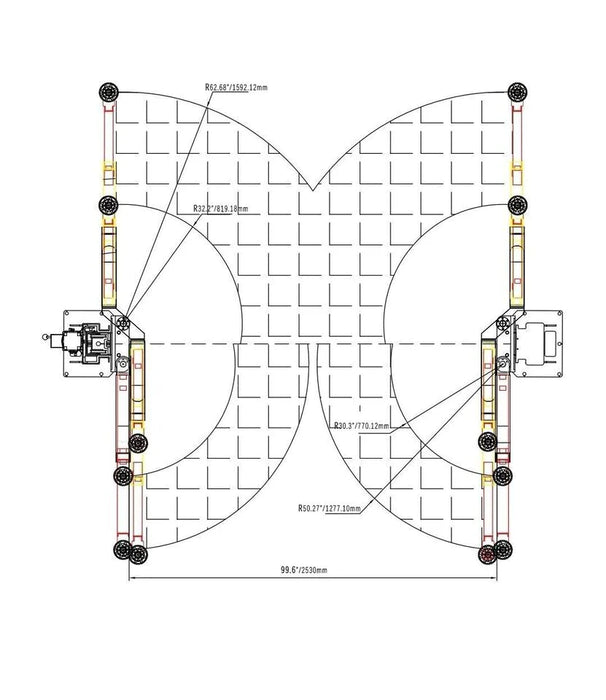

Drive Thru Clearance |
99.61" / 2530mm |
Motor |
220VAC/60HZ/1PH |
Net Weight |
1323lbs / 600KG |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
