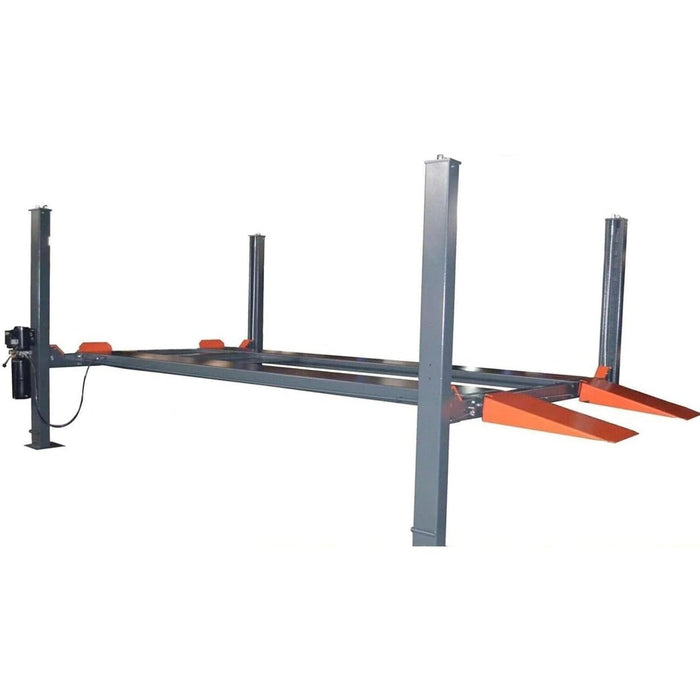

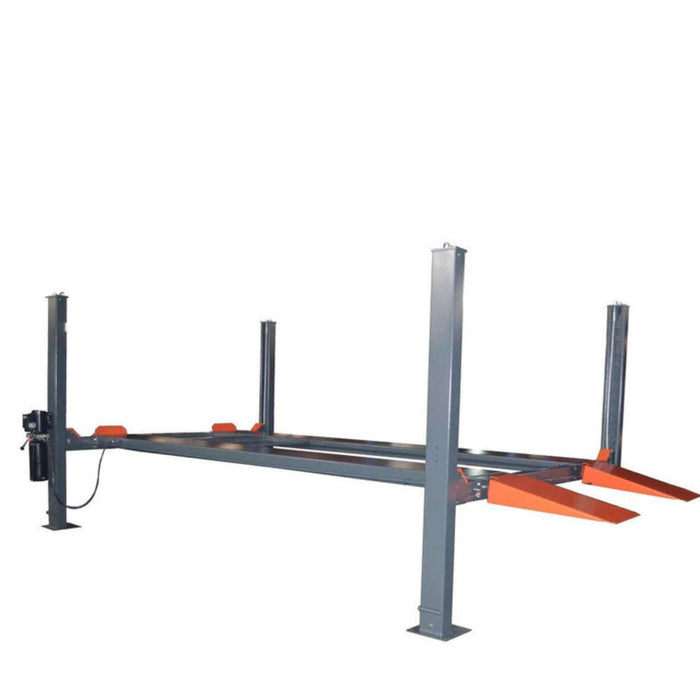

The Katool KT-4H110 Four Post Vehicle Lift is your trusted solution for heavy-duty lifting with an impressive 11,000 lbs capacity. This lift is CE approved and certified, adhering to the 115% dynamic loading capacity standard and passing a rigorous 150% static loading capacity test. Featuring a single-point manual safety lock release, it ensures secure and controlled lifting operations. Equipped with four mechanical locking devices, each with primary and secondary safety locks, this lift prioritizes safety. The powerside column's flexible installation options, at both sides, front, or rear, add convenience to your workspace. Non-skid diamond platforms and adjustable safety lock ladders provide stability and adaptability. The lift offers optional caster kit for easy mobility and optional rolling jacks for additional functionality (sold separately). Included are two drip trays and a jack tray for added convenience. The high-quality hydraulic system, available in 110V/60HZ/1PH or optional 220V/60HZ/1PH, ensures reliable and efficient lifting.
*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

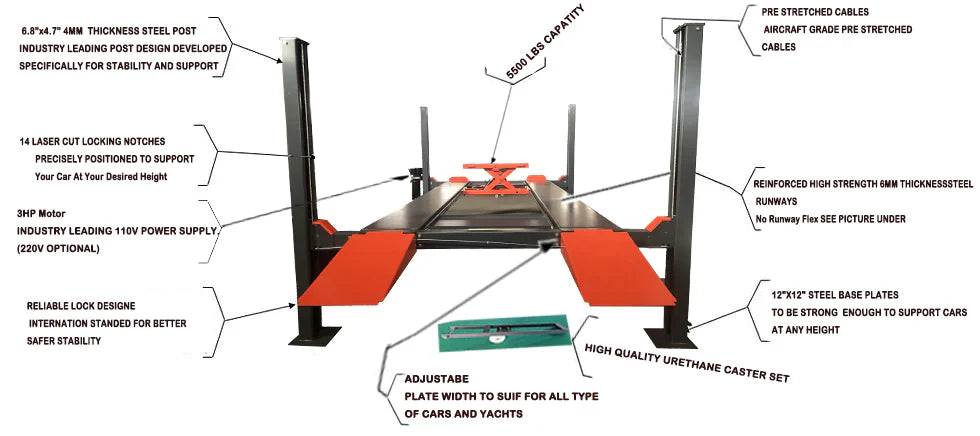

Features
11000lbs lifting capacity
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

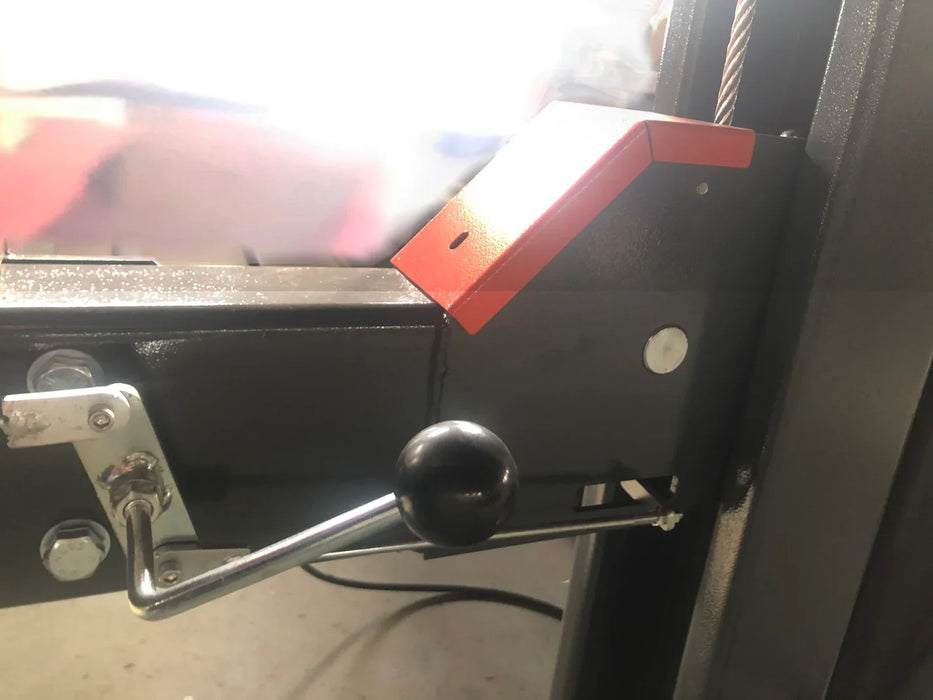

Single Point Manual Safety Lock Release

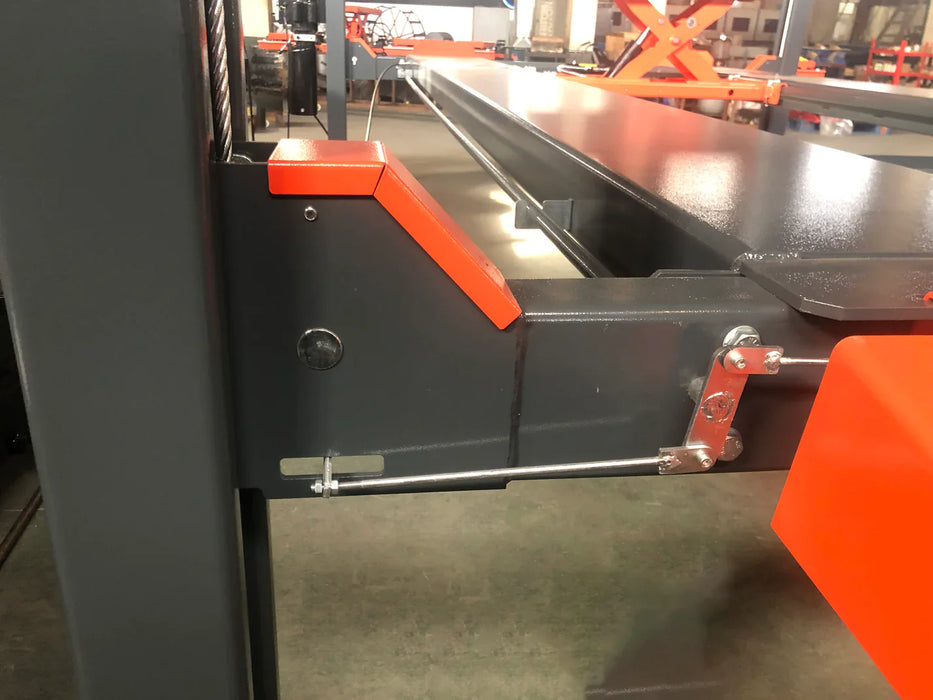

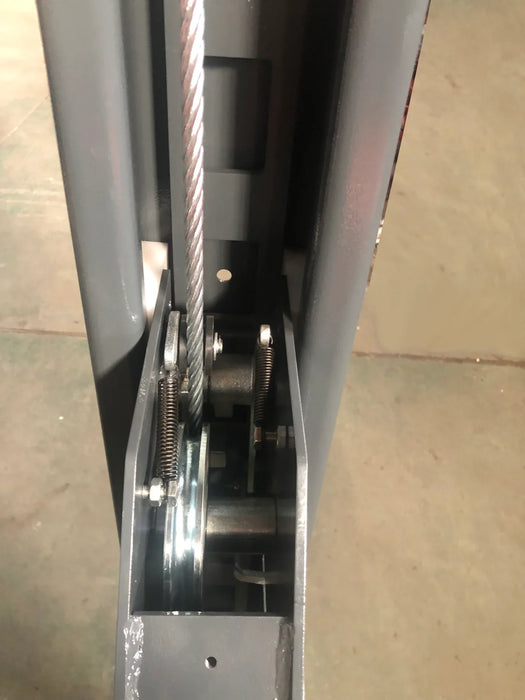

Four mechanical locking devices, each equipped with both primary and secondary safety locks.
Powerside column can be installed at both sides, front or rear.

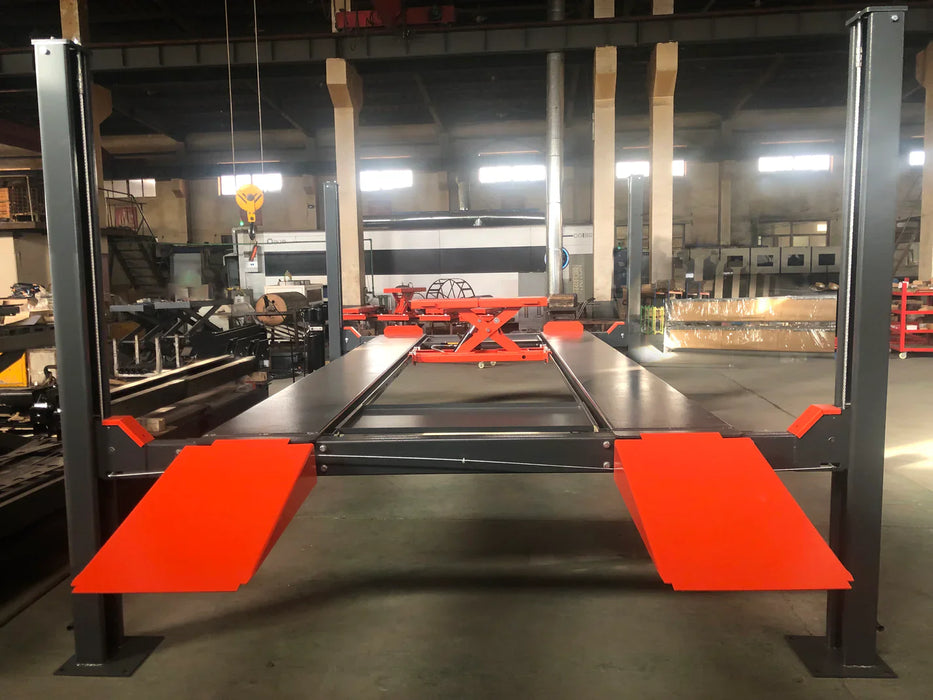

Non-skid diamond platforms and adjustable safety lock ladders.

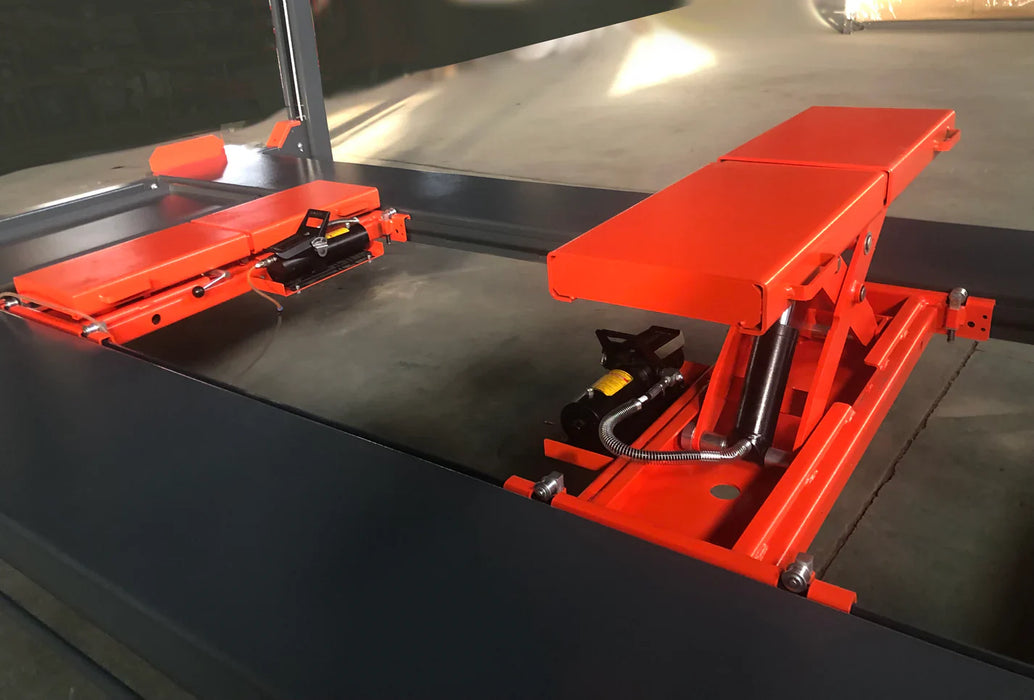

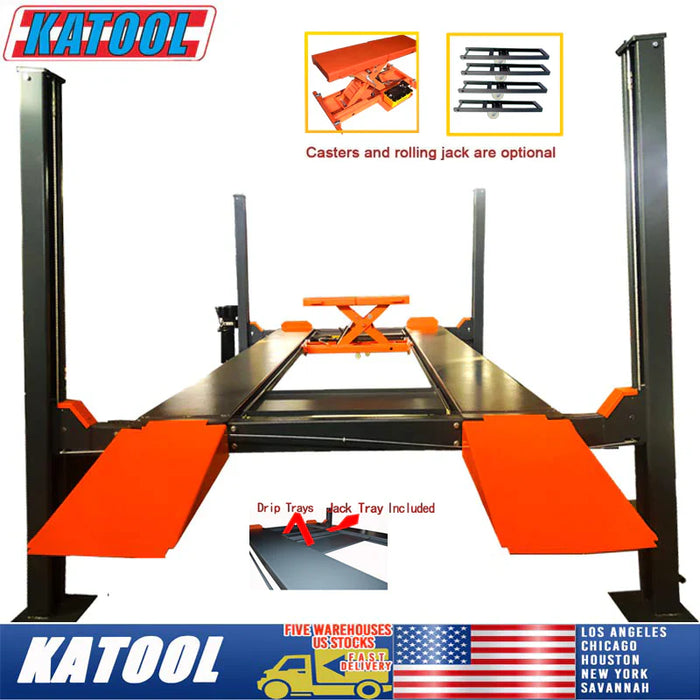

Optional caster kit for moving the lift around, and optional rolling jacks. *Rolling jacks and casters can be purchased separately but are not included*
Comes with two drip trays and a jack tray.
High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional)

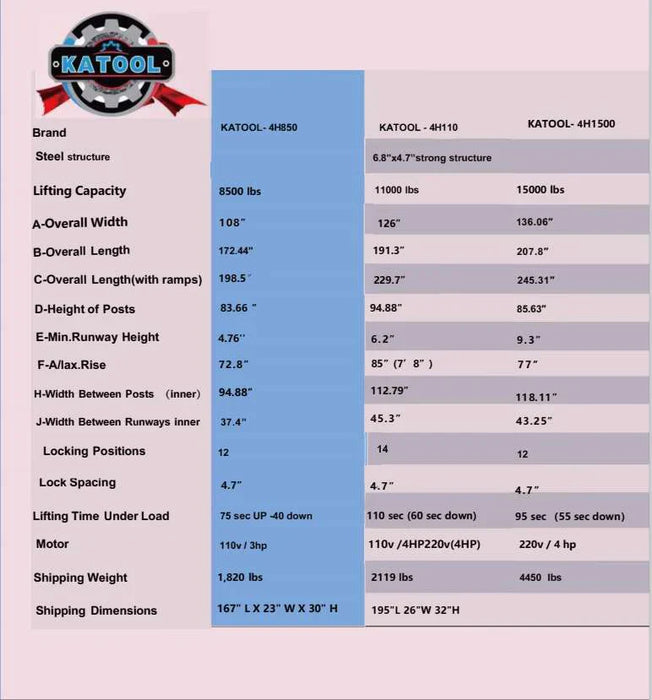

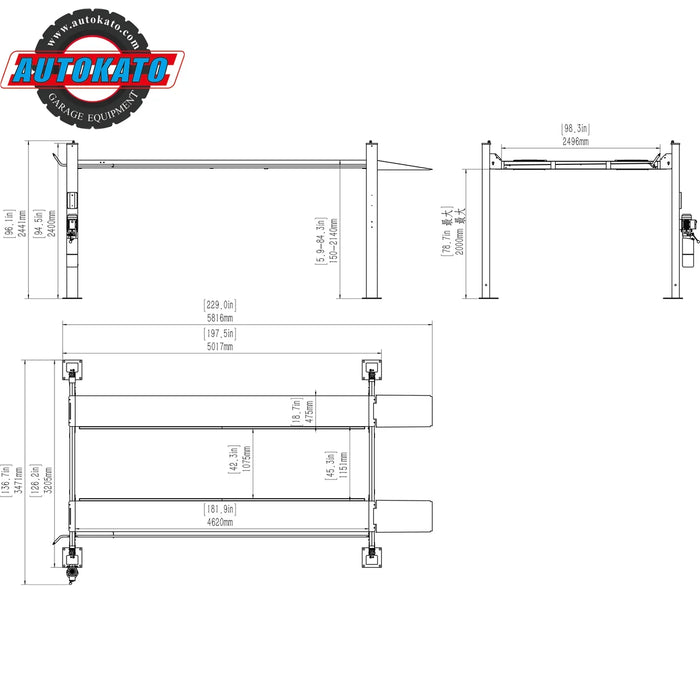

Specifications
Lifting Capacity
11000 lbs. (4990KG )
Max. Lifting Height
84.25" / 2140mm
Lifting Time
83s Up / 40s Down
Height of Posts
94.88" / 2410mm
Width Overall
126" / 3200mm
Length Overall
229.73" / 5835mm (with Ramps)
Inside Columns
112.81" / 2865mm
Min. Runway Height
6.2" / 157mm
Motor
110VAC/60HZ/1PH
Net Weight
2116lbs / 960KG
Installation
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes: - Cylinders, power units, motors, displays, electronics, etc. - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions: - Claims must fall within the warranty period. - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor. - Replacement parts will be provided at no cost, including free shipping.
Note: - All warranty claims are subject to approval by the warranty/service department. - Photos and/or videos of defects may be requested. - Do not disassemble any equipment before the issue is determined. - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs. - Labor is not included in the warranty.
