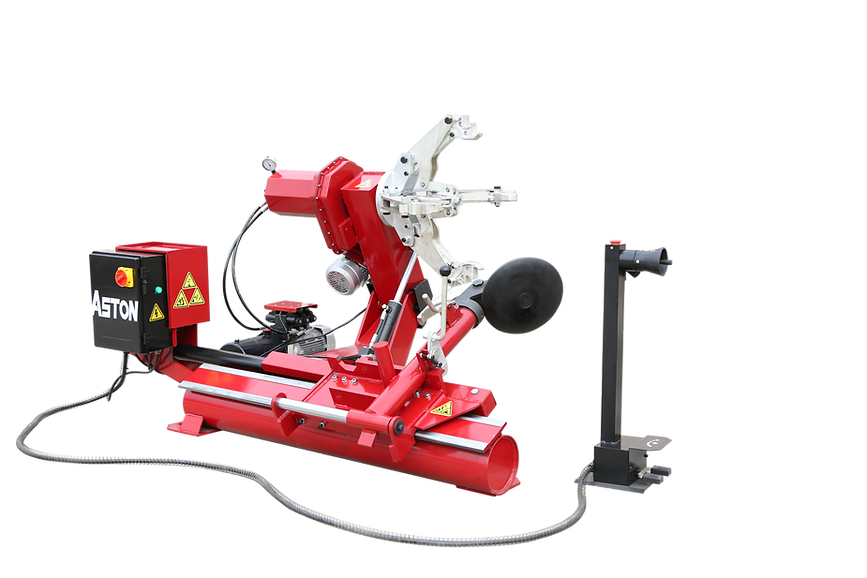

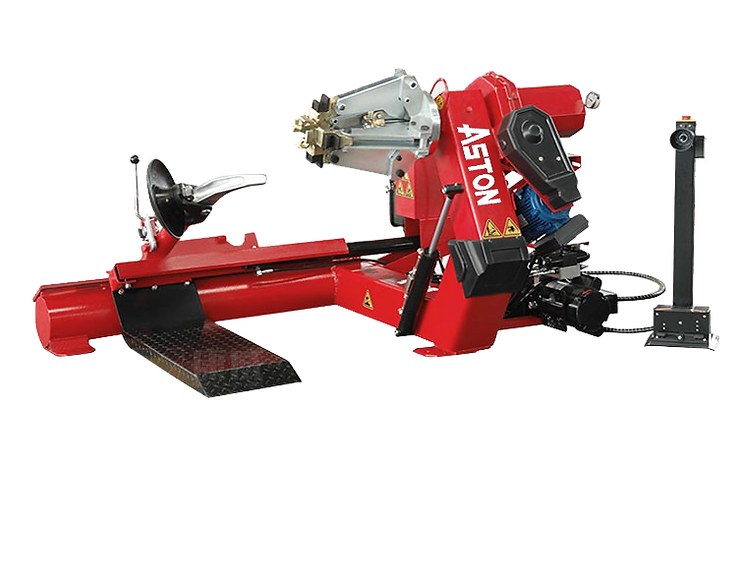

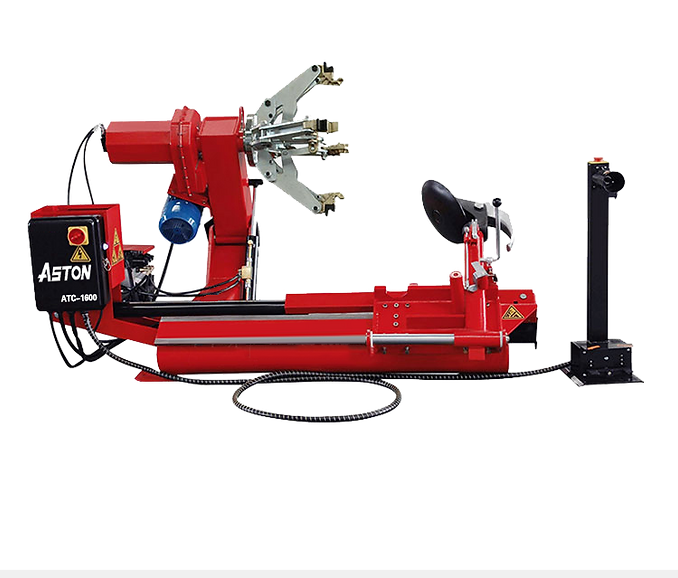

Aston® Truck Tire Changer Horizontal Designed ATC-3600

Features

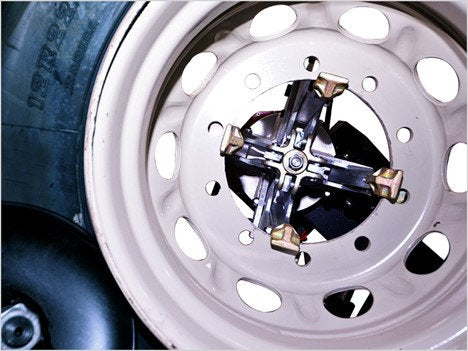

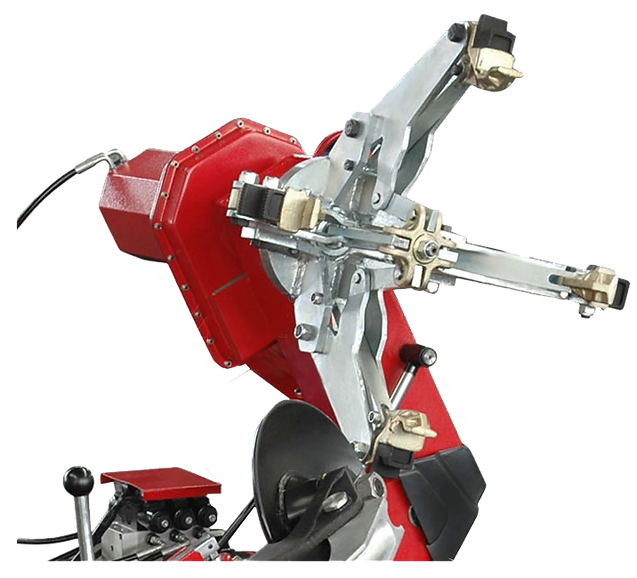

  • Four jaw rotating chuck
  • with two speeds

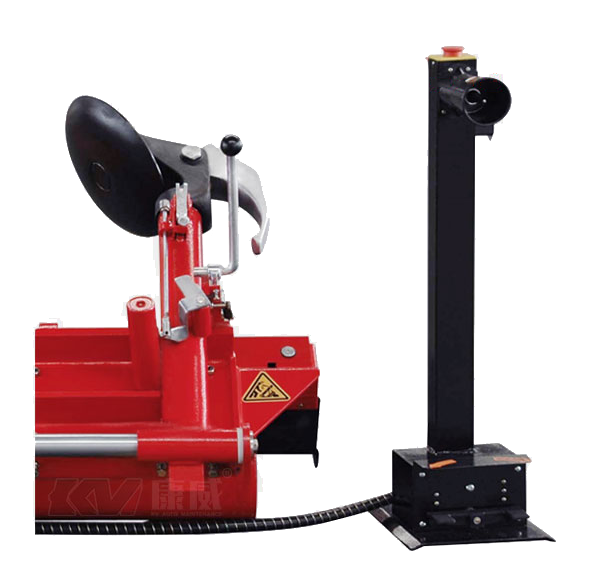

  • Control unit on a movable stand
  • Pressure regulated hydraulic pump
  • Quick change mount / demount arm

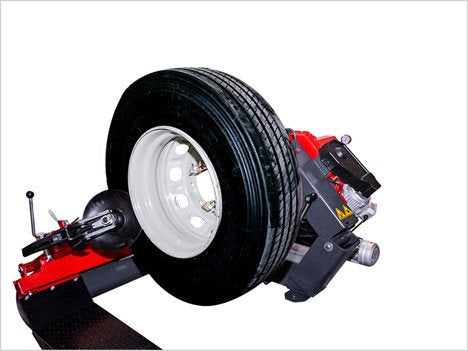

  • Handles wheels for most trucks, tractors, and earthmovers

Specification

Model#

ATC-3600

Rim Diameter

14" - 46"

Max wheel weight

1102 lbs. (500kg)

Max Wheel Width

31.5"/800mm

Max Tire Diameter

63"/1600mm

Hydraulic Pump Motor

2.2kw 220v – 3ph

Gearbox Motor

2.2kw 220v – 3ph

Bead Breaker Force

5510 lbs. (2500kg)

Max Torque

6457N.m

Operation Control Voltage

24V

Machine Weight

1146 lbs. (520kg)

Shipping Weight

1296 lbs. (588kg)

Power

220v 1ph

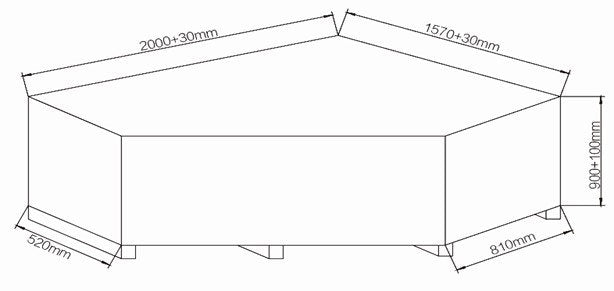

Shipping Dimension

81”x63”x41” (2058x1600x1042mm)
