Aston® Truck Tire Changer and Wheel Balancer Combo 3600-5133

Aston  | Authorized Dealer  |  SKU: 3600-5133 Combo

Original price $8,599.00 - Original price $8,599.00
Original price
$8,599.00
$8,599.00 - $8,599.00
Current price $8,599.00
Availability:
in stock, ready to be shipped

Buy Online Or Call Now To Order!

Best Prices - Price Match on most Aston products
Manufacturer Warranty Included - on all Aston
0% Financing Available - Aston + 0% APR, Applicable at Checkout
In Stock - most orders leave the warehouse in 3-5 business days
Questions? - Call (812) 359-1112

Want today's Aston prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

Why Choose My Security Direct?

  • Authorized Aston Dealer
  • Best Prices Online Guarantee
  • Fast FREE Shipping
  • Any Questions? Talk to Our Experts (812) 359-1112

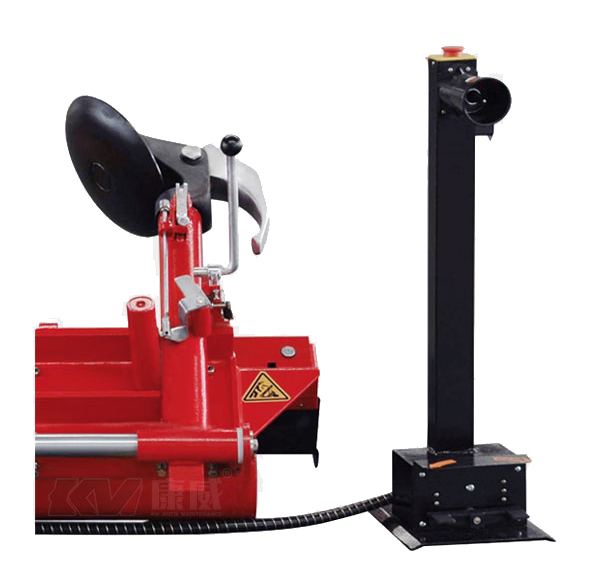

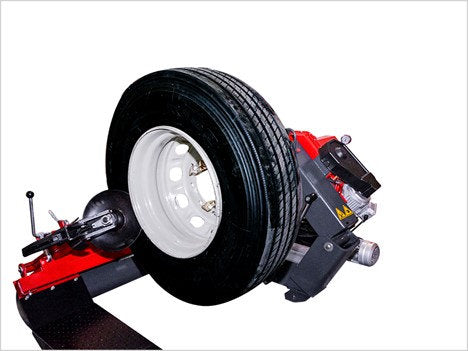

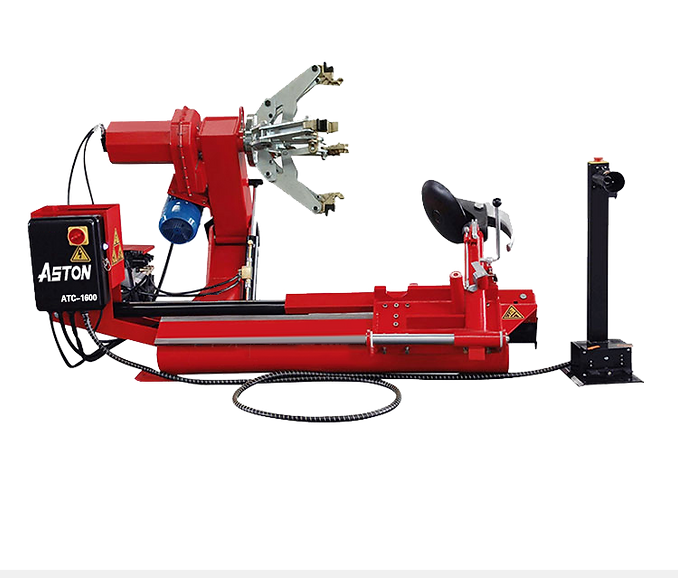

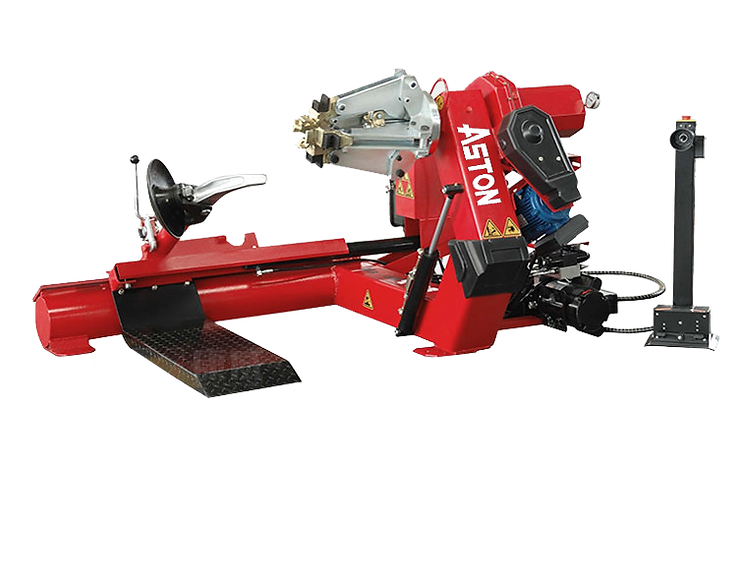

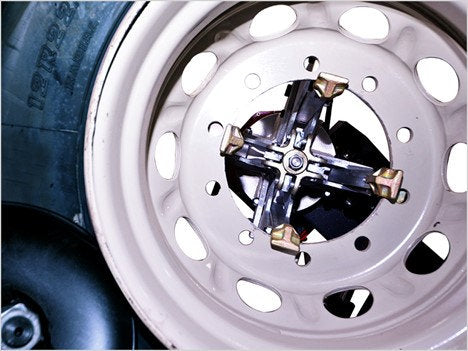

Aston Heavy Duty Truck Tire Changer Horizontal Designed (Video Available)

Model#

ATC-3600

Rim Diameter

14" - 42"

Max wheel weight

1102 lbs. (500kg)

Max Wheel Width

31.5"/800mm

Max Tire Diameter

63"/1600mm

Hydraulic Pump Motor

2.2kw 220v – 1ph

Gearbox Motor

2.2kw 220v – 1ph

Bead Breaker Force

5510 lbs. (2500kg)

Max Torque

6457N.m

Operation Control Voltage

24V

Machine Weight

1146 lbs. (520kg)

Shipping Weight

1296 lbs. (636kg)

Power

220v 1ph

Shipping Dimension

81”x63”x41” (2058x1600x1042mm)

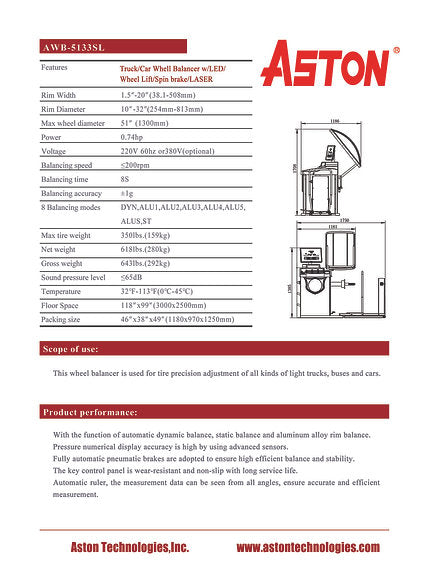

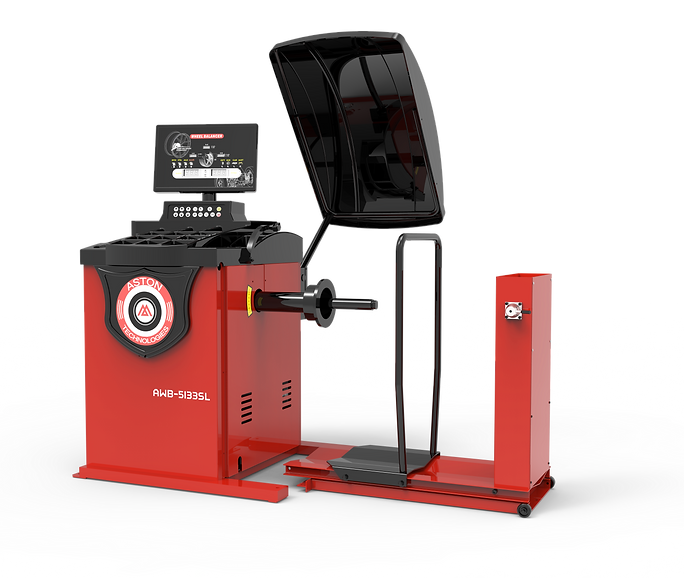

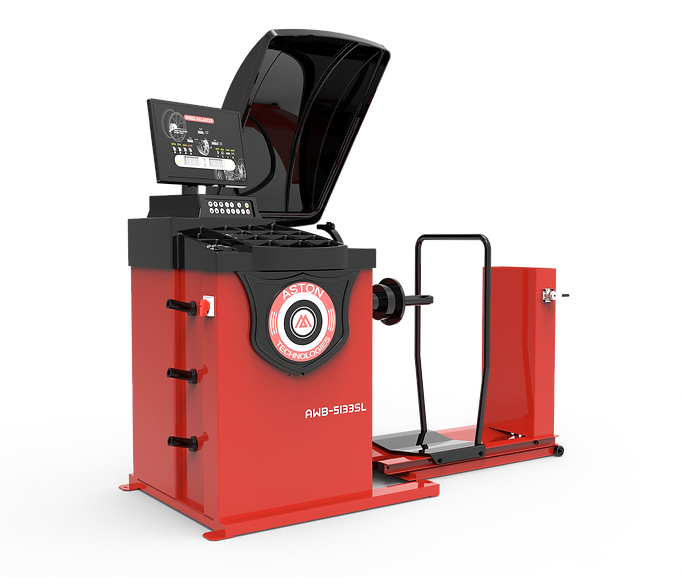

Aston Heavy Duty Truck Wheel Balancer with Laser Light AWB-5133SL

  • Fully Automatic
  • Laser Light Point Position
  • Easy to read LED screen
  • Wheel Lift Cart
  • Spin Break
  • Max tire weight: 350lbs
  • AWB-5133SL provides great value with superior accuracy and reliability

MODEL

AWB-5133SL

Features

Truck/Car Wheel Balancer w/LED/ Wheel Lift/Air brake/Laser Light

Rim Width

1.5″-20″(38.1-508mm)

Rim Diameter

10"-32" (254mm~813mm)

Max wheel diameter

51"(1300mm)

Power

0.37kw

Voltage

220V 60hz

Balancing speed

≤200rpm

Balancing time

8S

Balancing accuracy

1g

8 Balancing modes

DYN, ALU1, ALU2, ALU3, ALU4, ALU5, ALUS, ST

Max tire weight

490 lbs. (222kg)

Net weight

618 lbs. (280kg)

Gross weight

643 lbs. (292kg)

Sound pressure level

≤65dB

Temperature

32°F -113°F(0℃-45℃)

Floor Space

118″x 99″(3000×2500mm)

Packing size

45"x37"x47"(1143x940x1194mm)
