Aston® Tire Changer & Magnetic Levitation Wheel Balancer Combo 1560-3222

2.0 HP
Dual Assist Arm
Inner Rim: 14"~26"
Outer Rim: 12"~24"
Maximum Tire Diameter: 46"
Bead Blaster

Model#	ATC-1560
Outer Rim	12"-24＂
Inner Rim	14＂－26＂
Maximum Tire Diameter	46＂/1160mm
Maximum Tire Width	15＂/380mm
Pressing Force (10bar)	5510 lbs. (2500kg)
Operating Air Pressure	8bar－10bar（116－145psi）
Maximum Charge Pressure	3.5bar（50psi）
Power Supply Voltage	110v 1ph
Motor Power	1.5kw (*Motor 2.0HP*)
Shipping Dimension	43＂x 30＂x 36＂(1120×750×860mm)
Net Weight	531 lbs. (241kg)
Shipping Weight	597 lbs. (271kg)
Noise Level	＜70dB（A）
Assist Arm	*Dual Assist Arm*

Aston 3D Fully Automatic Wheel Balancer, Magnetic Levitation, State of the Art Technologies, LCD Touch Screen w/Laser Light AWB-3222MT

3D Fully Automatic Data Entry
Magnetic Levitation System and Self Propelled Balancing
No Motor No belt System Superior Accuracy!

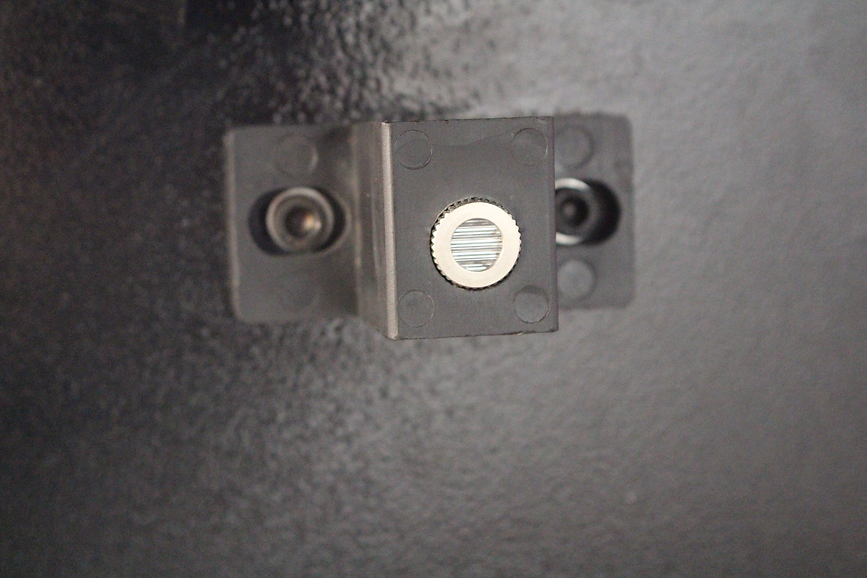

Visual Laser Technology pinpoints location of next weight placement
Self-Calibration
Easy to read LCD screen
Complete with wheel guard
Static and Dynamic Balancing

Model	AWB-3222MT
Features	3D Fully Automatic Magnetic Levitation/LCD/Laser/hood
Rim Diameter	10"-32" (254mm～813mm)
Tire Width	1.5"-20" (38mm~508mm)
Max Tire Diameter	39" (980mm)
Power	0.25kw
Voltage	110V 60hz
Balancing speed	≤200rpm
Balancing time	7S
Balancing accuracy	1g
8 Balancing modes	DYN, ALU1, ALU2, ALU3, ALU4, ALU5, ALUS, ST
Max tire weight	220 lbs. (100kg)
Net weight	293 lbs. (133kg)
Gross weight	315 lbs. (143kg)
Sound pressure level	<70db
Temperature	32°F -113°F（0℃-45℃）
Packing size	38"x32"x45"(965x838x1220mm)
