Aston® Tire Changer and Wheel Balancer Combo: 1580-3222

Aston  | Authorized Dealer  |  SKU: 1580-3222 Combo

Original price $5,499.00 - Original price $5,499.00
Original price
$5,499.00
$5,499.00 - $5,499.00
Current price $5,499.00
+ FREE SHIPPING
Availability:
in stock, ready to be shipped

Buy Online Or Call Now To Order!

Free Shipping - on most Aston products
Manufacturer Warranty Included - on all Aston
0% Financing Available - Aston + 0% APR, Applicable at Checkout
In Stock - most orders leave the warehouse in 3-5 business days
Questions? - Call (812) 359-1112

Want today's Aston prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

Why Choose My Security Direct?

  • Authorized Aston Dealer
  • Best Prices Online Guarantee
  • Fast FREE Shipping
  • Any Questions? Talk to Our Experts (812) 359-1112

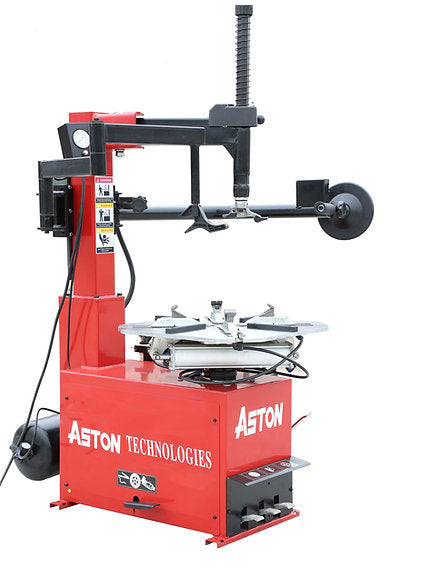

Aston® Tire Changer 2.0HP & Magnetic Levitation Wheel Balancer Combo 1580-3222

  • 2.0 Horse Power Strong Motor
  • Bead Blaster Underneath
  • Dual Assist Arm
  • Inner Rim: 12"~26"
  • Outer Rim: 12"~24"
  • Maximum Tire Diameter: 45"



  1. Double-wear resist scribing's makes wheel clamps move more fluently. The limited block avoids scratching wheels and can fix the position for tires on the wheel clamps automatically.
  2. Uses one cylinder to support both the right and left assist arms at the same time. Easy to operate and improves the working rate.
  3. Three points press the tires together with the helper, making it easier to change the tire and improves the working rate.
  4. The 186-steel cylinder that operates the blade makes the pressure of the bead breaker    more powerful. It also works and lasts a very long time. (over 600 thousand times of use)
  5. The shape, the angle, the material and the structure of the working head makes it            exceptionally easier to change the run-flat tires without damaging the wheels or rims.
  6. High power motor with low noise improved the working efficiency significantly
  7. The bead breaker, the claws, the working head and the crowbar are all equipped with      embedded plastic covers, protecting the rim from damaging and sliding.
  8. Stronger and stable structural design for the assist arms

Specifications

   Specs

Specs

Outer rim

12"-24"

Inner rim

12"-26"

Maximum tire diameter

45"/1160mm

Maximum tire width

17"/425mm

Pressing force (10bar)

5731 lbs. (2600kg)

Operating air pressure

8bar-10bar(116-145psi)

Maximum charge pressure

3.5bar(50psi)

Power supply voltage

110v 1ph

Motor power

1.5kw

Outline dimension

38"x34"x45"

Gross weight

617 lbs. (280kg)

Working state noise

<70dB(A)

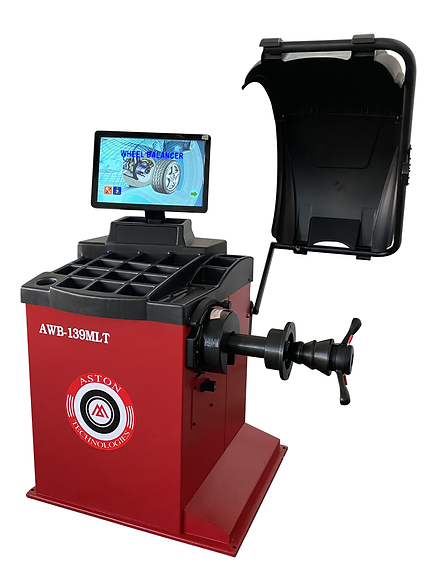

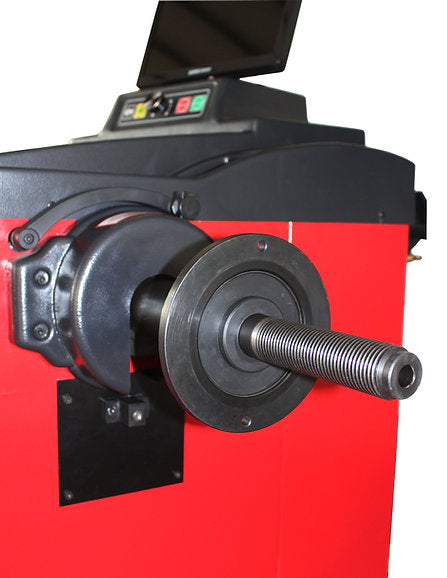

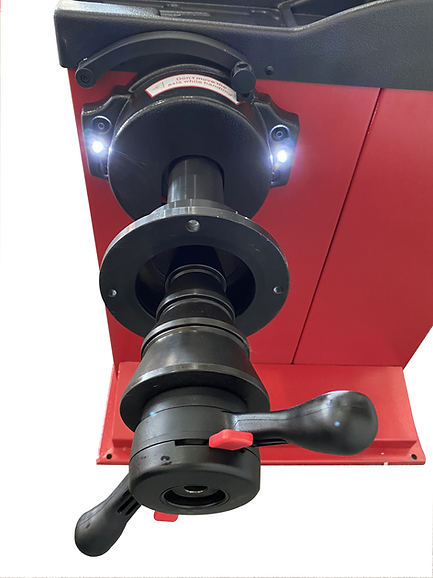

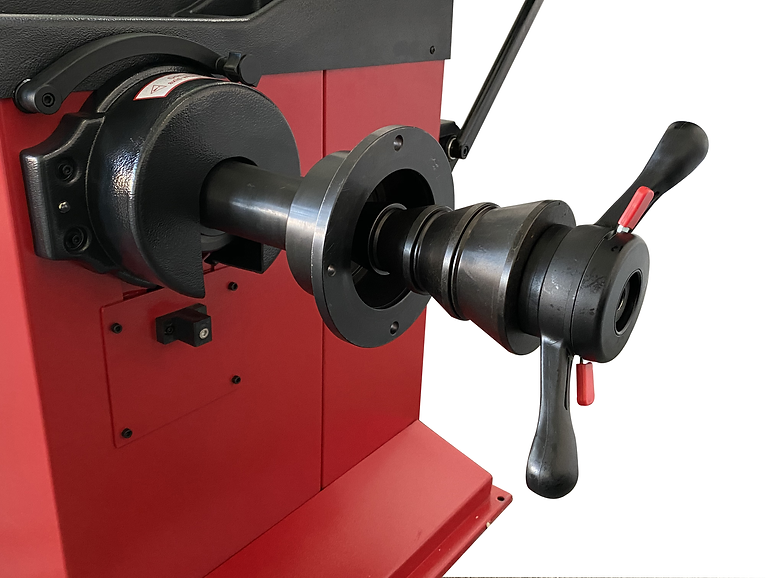

Aston Fully Automatic 3 D Magnetic Levitation Wheel Balancer/LCD Touch Screen/Laser Technologies. State of the Art Technologies AWB-3222MT

  • 3D Fully Automatic Data Entry* Magnetic Levitation System and Self Propelled Balancing
  • No Motor No belt System Superior Accuracy!

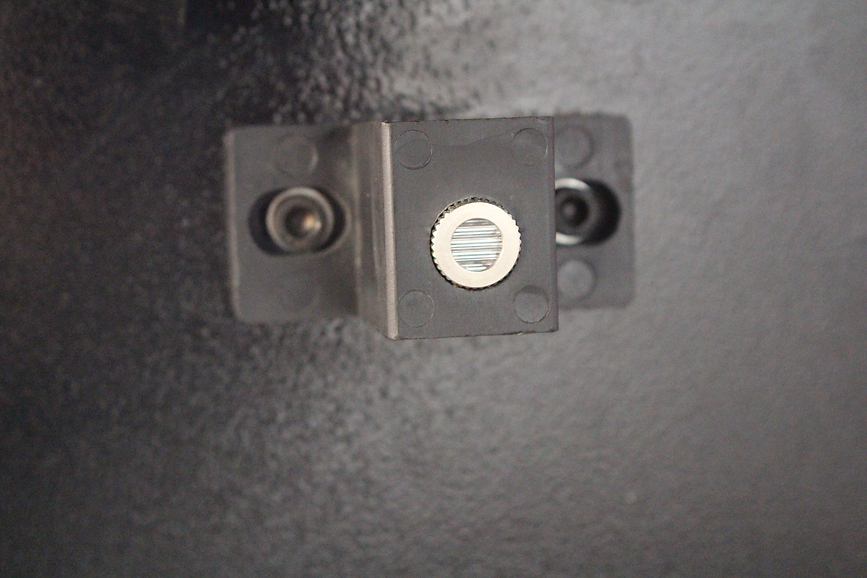

  • Visual Laser Technology pinpoints location of next weight placement
  • Self-Calibration
  • Easy to read LCD Touch Screen
  • Complete with wheel guard
  • Static and Dynamic Balancing

Model

AWB-3222MT

Features

3D Fully Automatic Magnetic Levitation/LCD Touch Screen/Laser/hood

Rim Diameter

10"-32" (254mm~813mm)

Tire Width

1.5"-20" (38mm~508mm)

Max Tire Diameter

39" (980mm)

Power

0.25kw

Voltage

110V 60hz

Balancing speed

≤200rpm

Balancing time

7S

Balancing accuracy

1g

8 Balancing modes

DYN, ALU1, ALU2, ALU3, ALU4, ALU5, ALUS, ST

Max tire weight

220 lbs. (100kg)

Net weight

285 lbs. (130kg)

Gross weight

315 lbs. (143kg)

Sound pressure level

<70db

Temperature

32°F -113°F(0℃-45℃)

Packing size

38"x33"x48"(965x838x1220mm)
