Aston® Tilt Back Tire Changer Combo 2.0HP Stronger Motor 1680-3022

Aston  | Authorized Dealer  |  SKU: 1680-3022 Combo

Original price $3,899.00 - Original price $3,899.00
Original price
$3,899.00
$3,899.00 - $3,899.00
Current price $3,899.00
Availability:
in stock, ready to be shipped

Buy Online Or Call Now To Order!

Best Prices - Price Match on most Aston products
Manufacturer Warranty Included - on all Aston
0% Financing Available - Aston + 0% APR, Applicable at Checkout
In Stock - most orders leave the warehouse in 3-5 business days
Questions? - Call (812) 359-1112

Want today's Aston prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

Why Choose My Security Direct?

  • Authorized Aston Dealer
  • Best Prices Online Guarantee
  • Fast FREE Shipping
  • Any Questions? Talk to Our Experts (812) 359-1112

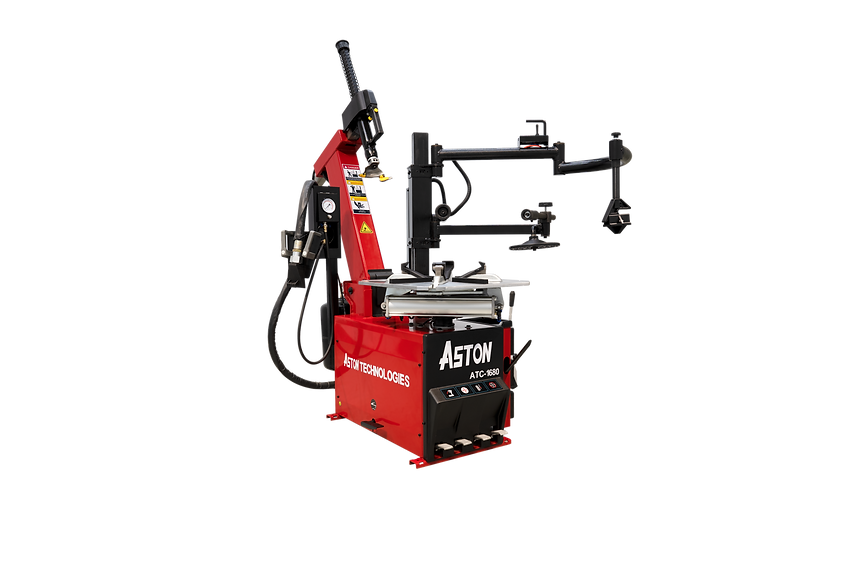

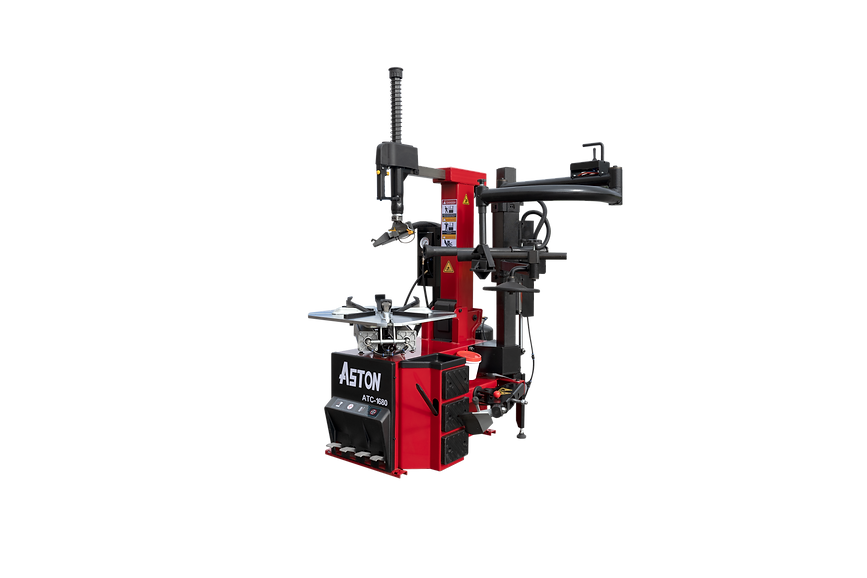

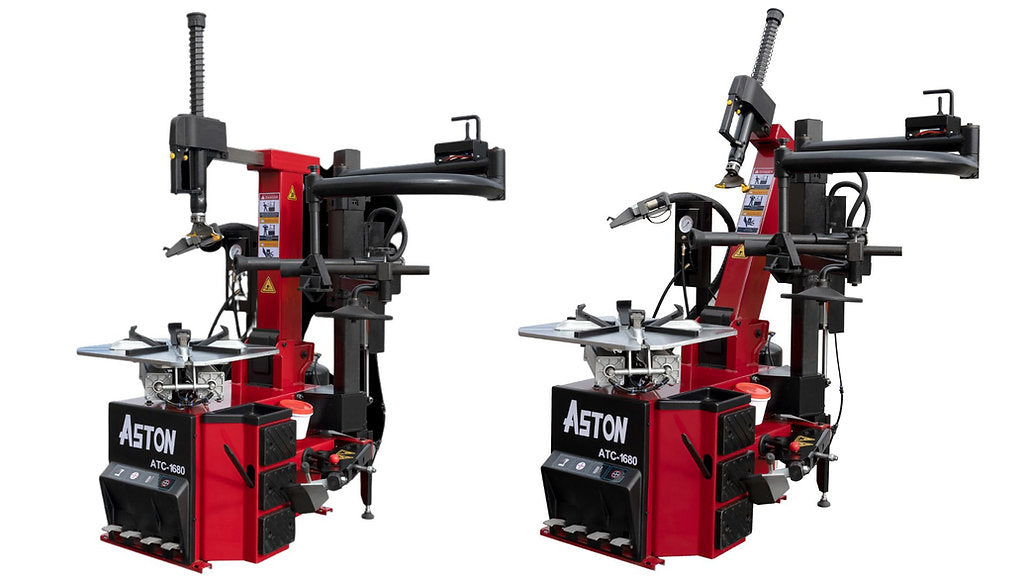

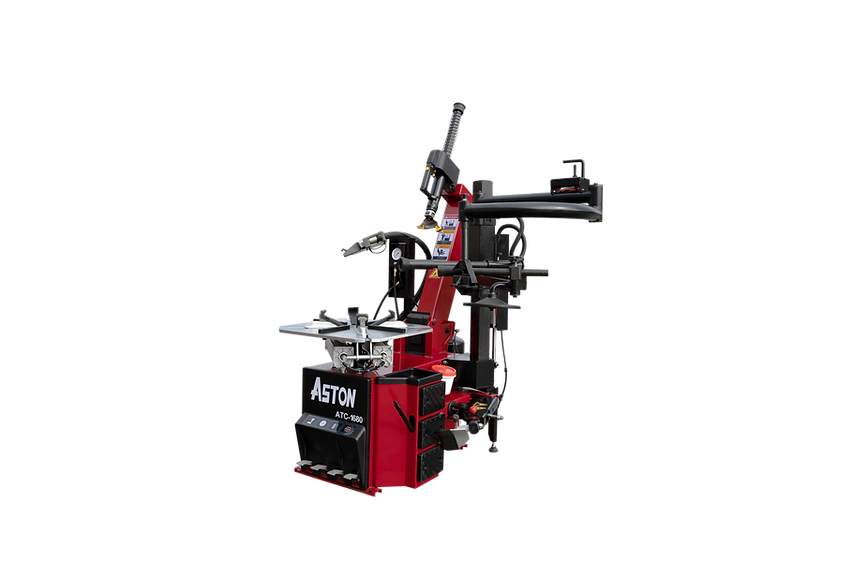

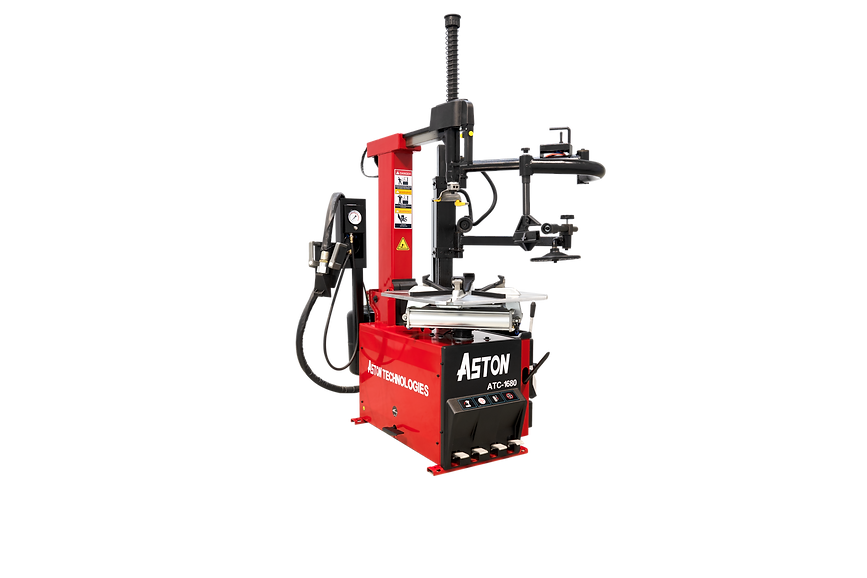

Aston Tire Changer ATC-1680

  • 2.0 HP Motor
  • Bead Blaster
  • Tilt Back Post

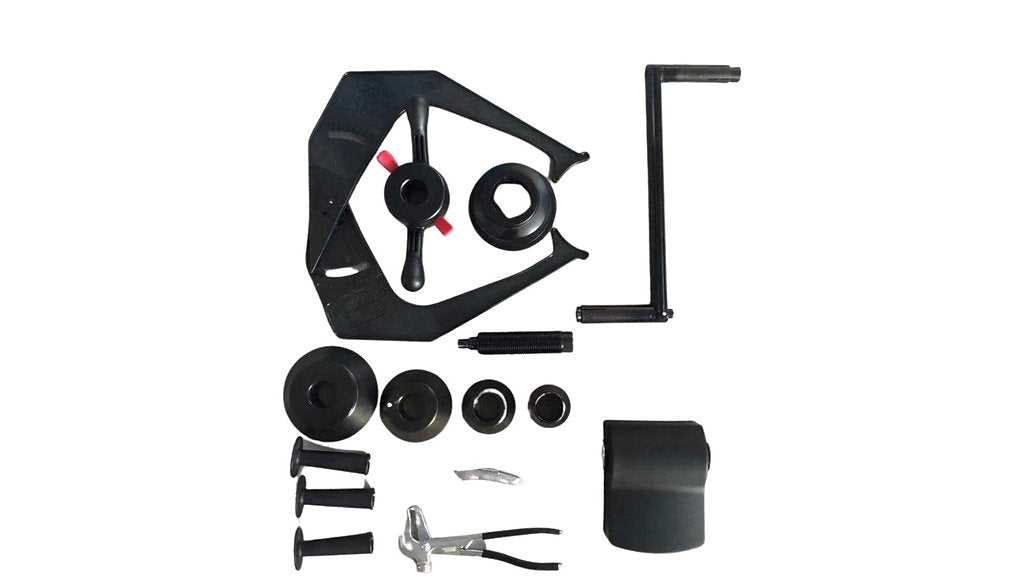

  • With Inflator Post and tools box
  • Inner Rim: 16"-28"
  • Maximum Tire Diameter: 48"

Model#

ATC-1680

Outer Rim

14"-26"

Inner Rim

16"-28"

Maximum Tire Diameter

48"/1200mm

Maximum Tire Width

17"/425mm

Pressing Force (10bar)

5510lbs. (2500kg)

Operating Air Pressure

8bar-10bar(116-145psi)

Maximum Charge Pressure

3.5bar(50psi)

Power Supply Voltage

120v 1ph

Motor Power

1.5kw (Motor 2.0HP)

Shipping Dimension

Crate1: 45"x41"x36"(1130x1020x900mm)

Crate2: 50"x21"x17"(1270x530x420mm)

Net Weight

640 lbs. (290kg)

Shipping Weight

661lbs. (300kg)

Noise Level

<70dB(A)

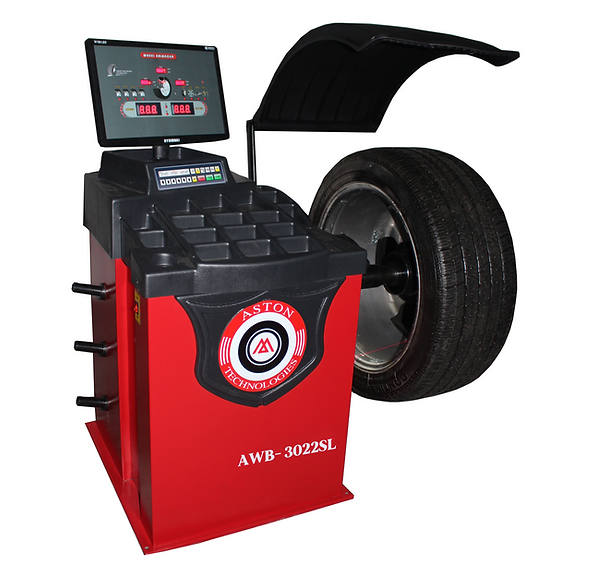

Aston 2D Fully Automatic Wheel Balancer AWB-3022SL

  • 2D Fully Automatic data entry
  • Self-Calibration
  • Visual Laser Technology pinpoints location of next weight placement
  • Double clutch motor with brake function

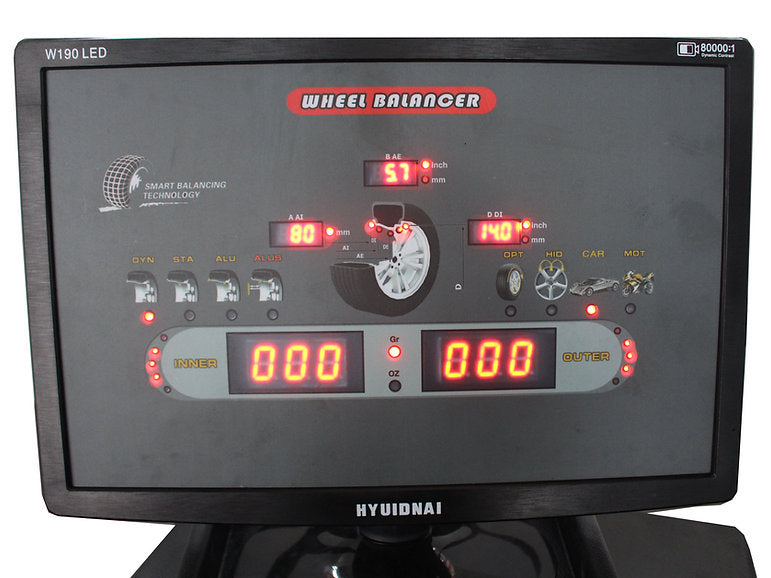

  • Easy to read LED screen
  • Complete with wheel guard
  • Static and Dynamic Balancing

 Model

AWB-3022SL

Features

2D Fully Automatic/Laser/Double Clutch Motor w/Brake Function/LED

Rim Diameter

10"-32" (254mm~813mm)

Tire Width

1.5"-20" (38mm~508mm)

Max Tire Diameter

39" (980mm)

Power

0.25kw

Voltage

110V 60hz

Balancing speed

≤180rpm

Air pressure

6 - 8 bar

Balancing time

8S

Balancing accuracy

1g

8 Balancing modes

DYN, ALU1, ALU2, ALU3, ALU4, ALU5, ALUS, ST

Max tire weight

165 lbs. (75kg)

Net weight

 300lbs. (136kg)

Gross weight

315 lbs. (143kg)

Sound pressure level

<70db

Temperature

32°F -113°F(0℃-45℃)

Packing size

38"x33"x48"(965x838x1220mm)
