Aston® 2-Post Car Lift 10000 lbs. Single Point Lock Release AL-100XH

Aston  | Authorized Dealer  |  SKU: AL-100XH

Original price $3,499.00 - Original price $3,499.00
Original price
$3,499.00
$3,499.00 - $3,499.00
Current price $3,499.00
+ FREE SHIPPING
Availability:
in stock, ready to be shipped

Buy Online Or Call Now To Order!

Free Shipping - on most Aston products
Manufacturer Warranty Included - on all Aston
0% Financing Available - Aston + 0% APR, Applicable at Checkout
In Stock - most orders leave the warehouse in 3-5 business days
Questions? - Call (812) 359-1112

Want today's Aston prices but not ready for delivery?

No problem! All orders receive special attention and in most cases we can hold items and begin processing at a later date! Please contact us for more details!

Why Choose My Security Direct?

  • Authorized Aston Dealer
  • Best Prices Online Guarantee
  • Fast FREE Shipping
  • Any Questions? Talk to Our Experts (812) 359-1112

Aston® 10000lbs. 2 post lift base plate. Single-Lock-Release with truck adapters. Laser cutting technology. High-end lift.

  • Single Point Lock Release

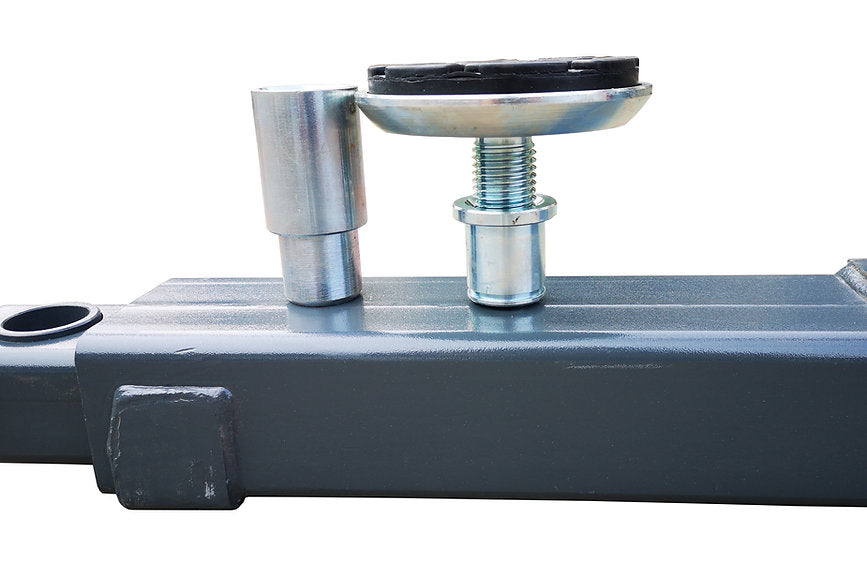

  • Truck Adapters Included
  • Lift Structure and Hydraulics CE Certified
  • Aston® High-End 10,000 lbs. 2 post car lift Base Plate

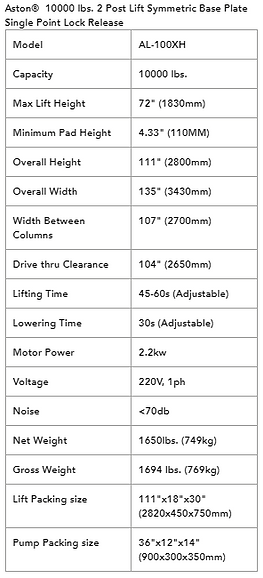

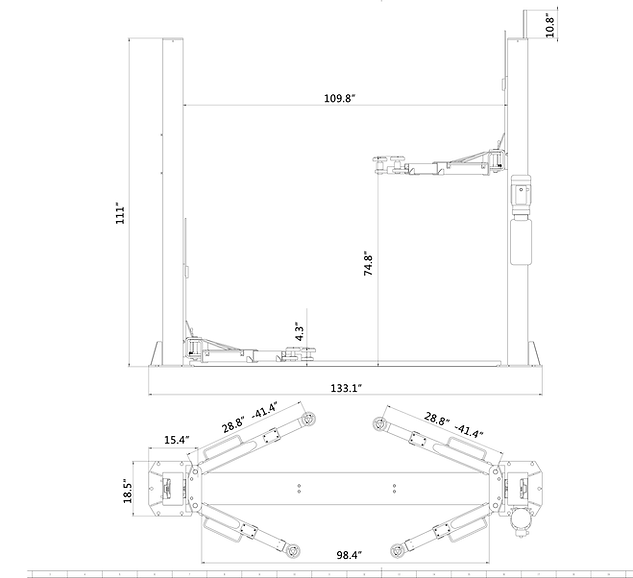

Specifications

Model

AL-100XH

Capacity

10000 lbs.

Max Lift Height

75" (1900mm)

Minimum Pad Height

4.33" (110MM)

Overall Height

111" (2820mm)

Overall Width

135" (3430mm)

Width Between Columns

110" (2750mm)

Drive thru Clearance

110" (2750mm)

Lifting Time

45-60s (Adjustable)

Lowering Time

30s (Adjustable)

Motor Power

2.2kw

Voltage

220V, 1ph

Noise

<70db

Net Weight

1135lbs.

Gross Weight

1235 lbs.

Lift Packing size

111"x18"x29"

Pump Packing size

36"x12"x14"


Features

•220V  60HZ  1PH   3HP MOTOR

•Single Point Safety Lock Release

•Super Large Base 18.5" x 15.36" x 0.63"

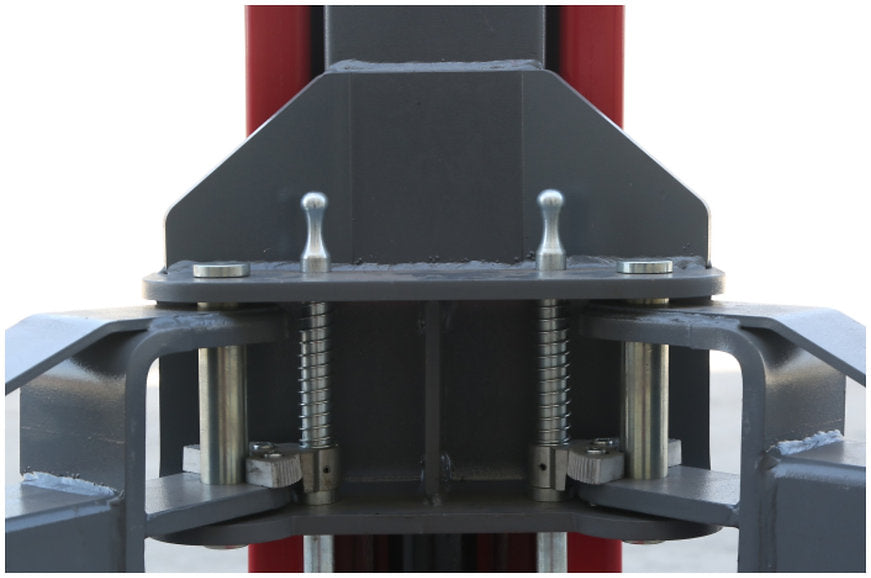

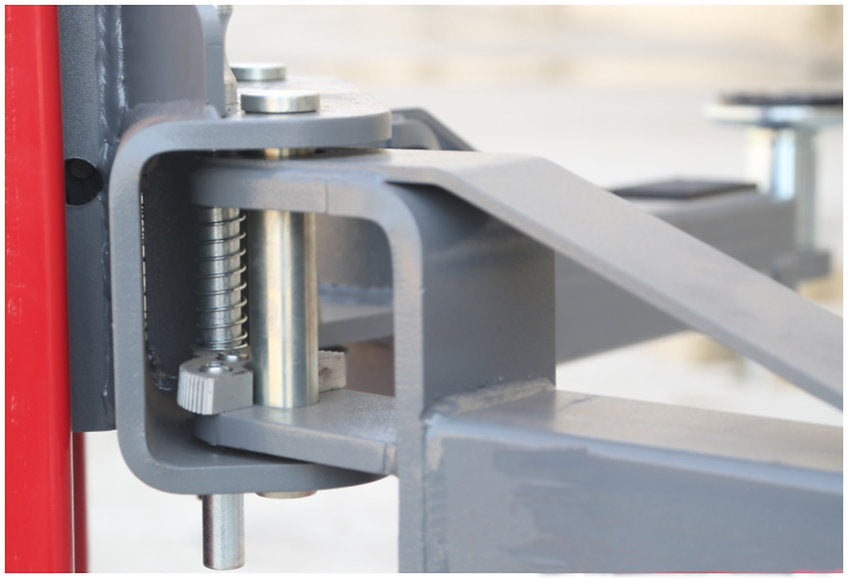

•Automatic arm lock restraints

•Relief valve built in power pump to prevent overloading

•Door guards protection rubber

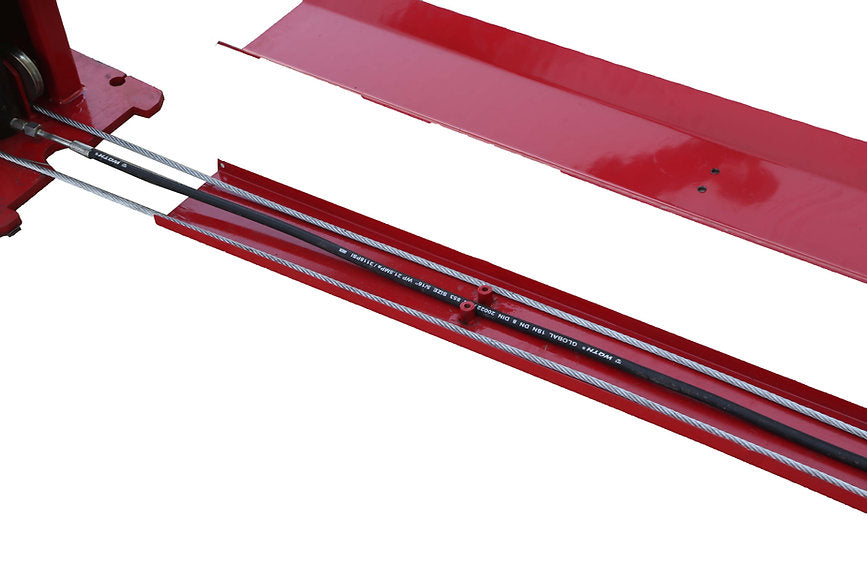

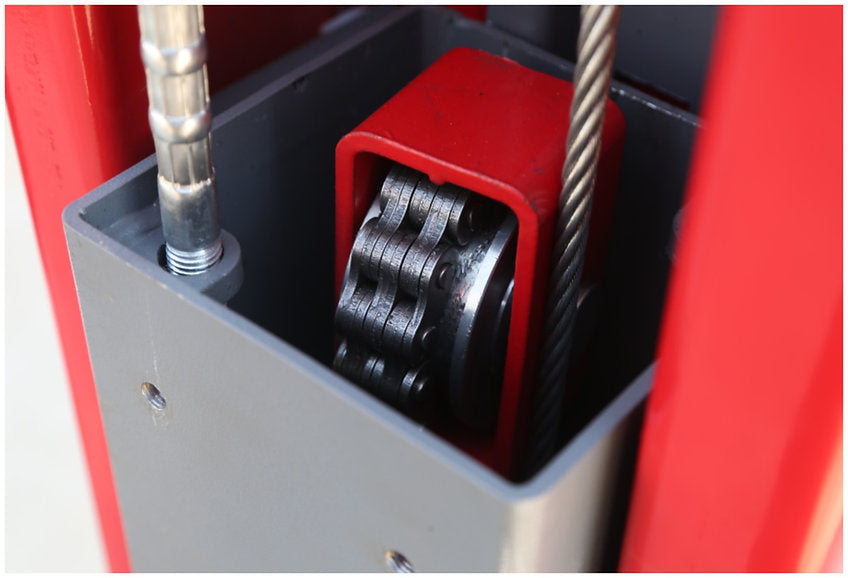

•Heavy duty 5/16" diameter cable and 4.56" pulley reduce high stress on synchronization process and increase cable life

•Stiffened base plate 0.63" thickness

•Ultra high molecular self lubricating nylon slider ensures carriage smooth moving up and down

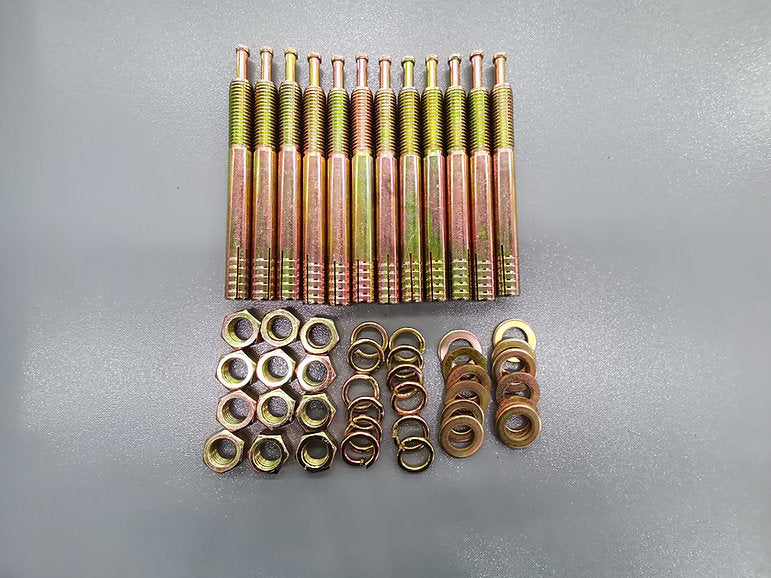

•Anchor bolts/mounting hardware included
