*Please REQUEST A SHIPPING FEE QUOTE before placing your order

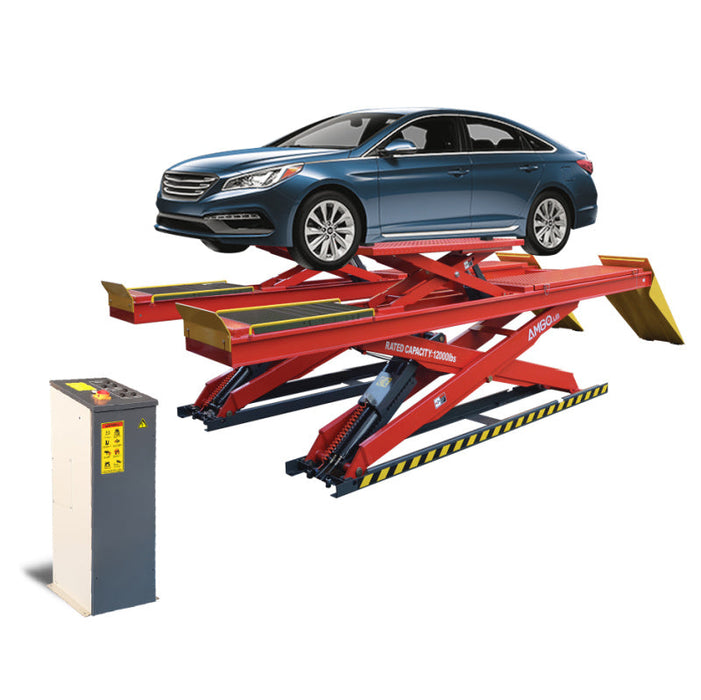

The AMGO DX-12A Double Scissors Lift is the perfect choice for effortlessly lifting all wheels off the ground. It's great for brake, tire, suspension, and alignment work, making your tasks easier and more convenient. The DX-12A is built tough, versatile, and user-friendly, lifting up to 12,000 lbs. It's the lift you need for reliable and efficient performance.
Features
- 12,000lbs capacity for main scissor lift and 9,000lbs capacity for secondary scissor lift
- Synchronization cylinders system equipped with hose burst valves
- Safety stop device at the height of 11 3/4″, both control buttons are needed to lower the lift from 11 3/4″ to ground, with tone alarm for added safety
- Skid proof diamond runways and optional adjustable turnplate pockets
- Self-lubricating UHMW polyethylene sliders and bronze bushings
Specifications
| Model |
DX-12A |
| Main Scissor Lifting Capacity |
12,000 lbs (5,500 kg) |
| Lifting Time |
63 seconds |
| A1: Max. Lifting Height |
73 5/8″ (1870mm) |
| A2: Minimum Height |
12 5/8″ (320mm) |
| B: Runway Length |
196 1/2″ (4991mm) |
| C: Overall Width |
86 1/4″ (2190mm) |
| D: Width Between Runways |
37″ (940mm) |
| E: Overall Length(Inc.Ramps) |
257″ (6527mm) |
| F: Min.Four Wheel Align |
85 7/8″ (2180mm) |
| G: Max.Four Wheel Align |
166 1/2″ (4230mm) |
| H: Max.Two Wheel Align |
172 7/8″ (4390mm) |
| Secondary Scissor Lifting Capacity |
9,000lbs (4000kg) |
| I: Secondary Scissor Lifting Height |
16 1/2″ (420mm) |
| J: Secondary Scissor Length |
63″~74″ (1600~1880mm) |
| Gross Weight |
5,706 lbs (2,588 kg) |
| Motor |
2.0HP,220V/60Hz,single phase |
Manual
Amgo DX-12A Manual
Amgo DX-12A Installation Instruction
