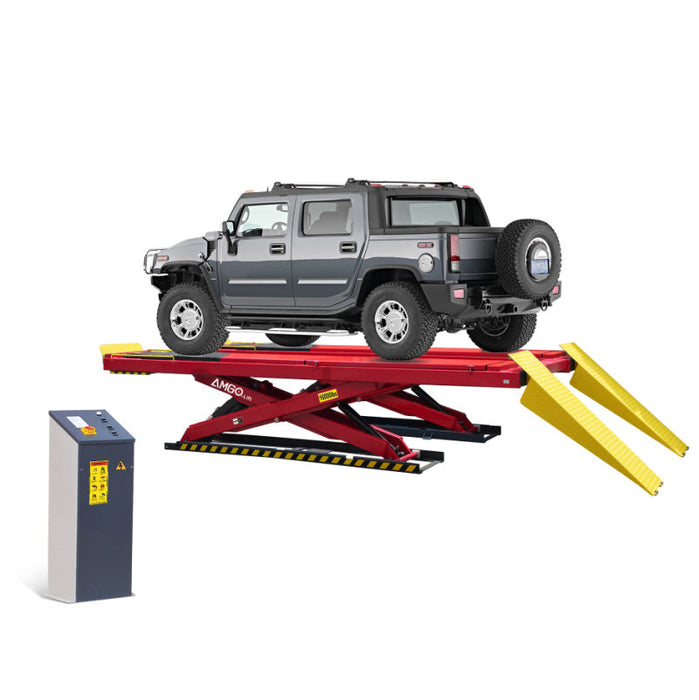

AMGO AX-16A 16,000 lbs Alignment Scissor Lift

AMGO  | Authorized Dealer  |  SKU: AX-16A

Original price $17,565.00 - Original price $17,565.00
Original price
$17,565.00
$17,565.00 - $17,565.00
Current price $17,565.00

Buy Online Or Call Now To Order!

Best Prices - Price Match on most AMGO products
Manufacturer Warranty Included - on all AMGO
0% Financing Available - AMGO + 0% APR, Applicable at Checkout
In Stock - most orders leave the warehouse in 3-5 business days
Questions? - Call (812) 359-1112

*Please REQUEST A SHIPPING FEE QUOTE before placing your order

The AMGO AX-16A Alignment Scissor Lift is perfect for handling big vehicles, giving your shop more capacity and handling a heavier workload. Its tough design makes it super reliable. With a hefty 8-ton lifting capacity, it's a heavy-duty workhorse for mechanics, making their work more efficient and boosting productivity for bigger profits in the long run. It's the lift that goes beyond alignment, adding muscle to your shop's capabilities.

Features

  • 2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
  • Electro-air control system, which operates the self-lock safety mechanism
  • Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
  • Skid proof diamond platform provides traction for tires to stay put

Specifications

Model AX-16A
Style Alignment
Lifting Capacity 16,000 lbs (7,300 kg)
Lifting Time 110 seconds
A1: Max. Lifting Height 73 5/8″ (1870mm)
A2: Minimum Height 13″ (330mm)
B: Runway Length 213 3/4″ (5428mm)
C: Overall Width 94 1/8″ (2390mm)
D: Width Between Runways 44 7/8″ (1140mm)
E: Overall Length(Inc.Ramps) 274 1/8″ (6964mm)
F: Min.Four Wheel Align 98″ (2490mm)
G: Max.Four Wheel Align 184 1/2″ (4680mm)
H: Max.Two Wheel Align 190 1/2″ (4840mm)
Gross Weight 6,345lbs (2,878 kg)
Motor 2.0HP,220V/60Hz,single phase

Scissor Lift AX-16A Diagram

Amgo Warranty 5-3-2

Manual

Amgo AX-16A Manual

Amgo AX-16A Installation Instruction
