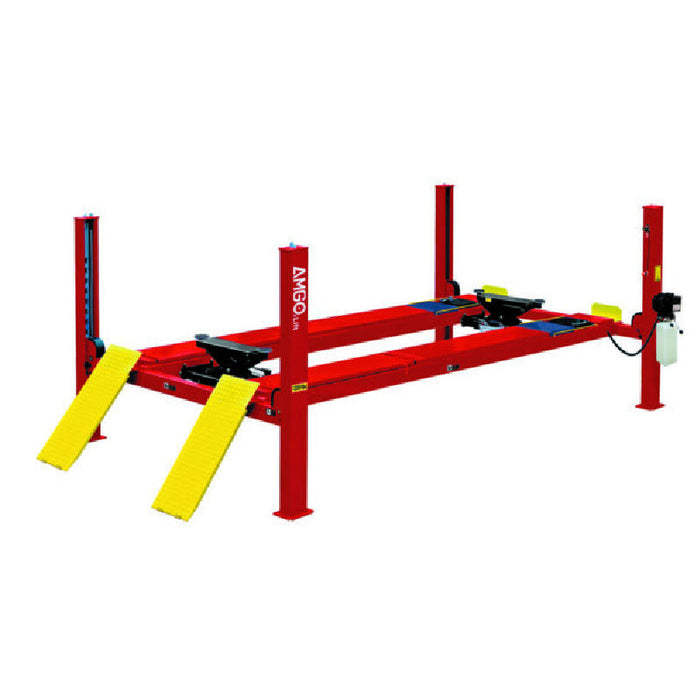

AMGO PRO-12A 12,000 lbs 4 Post Lift

AMGO  | Authorized Dealer  |  SKU: PRO-12A
Original price $0
Original price $6,210.00 - Original price $6,210.00
Original price
Current price $6,210.00
$6,210.00 - $6,210.00
Current price $6,210.00

Buy Online Or Call Now To Order!
Manufacturer Warranty Included - on all AMGO
Questions? - Call (812) 359-1112

 More payment options

*Please REQUEST A SHIPPING FEE QUOTE before placing your order



The AMGO PRO-12A is the lift for you if you need alignment work done on everyday vehicles. With double safety locks to ensure you and your vehicle are always safe, you can feel secure with your work. With great performance, this is the perfect lift to meet the needs of garage and shop owners.

Turnplates not included.



Features

  • 12,000 lbs lifting capacity.
  • Air-released safety lock for convenient operation and reliability
  • Mechanical self-lock and cable-breaking protection
  • 1/2″ Aircraft at Quality Cable
  • Hydraulic cylinders are designed and made to high quality standards
  • Skid proof diamond platform
  • Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 43 1/4”(1100mm) and maximum distance is 51 1/8”(1300mm).
  • Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two years on Electrical Components
  • CE Approved and Certified
  • Meets or exceeds the standards prescribed by European Standard EN-1493

Specifications

Model PRO-12A
Style Alignment
Lifting Capacity 12,000 lbs (5,500 kg)
Lifting Time 63S
A: Overall Length (Inc.Ramps) 236 5/8″ (6012mm)
B: Overall Length (No.Ramps) 200 3/4″ (5100mm)
C: Overall Width 126 1/4″ (3208mm)
D: Width Between Columns 112 1/4″ (2852mm)
E: Max. Lifting Height 75 3/8″ (1915mm)
F: Overall Height 86″ (2185mm)
G: Minimum Height 8 5/8″ (220mm)
H: Max.Underneath Height 67 7/8″ (1724mm)
I: Drive-Thru Clearance 98 3/8″ (2498mm)
J: Width Between Runways 43 1/4″ (1100mm), Max. 51 1/8″ (1300mm)
K: Outside Edge of Runways 83 1/4″ (2116mm), Max. 91 1/8″ (2316mm)
L: Min. Four Wheel Align 78 3/4″ (2000mm)
M: Max. Four Wheel Align 155 7/8″ (3960mm)
N: Max. Two Wheel Align 161 3/8″ (4100mm)
Gross Weight 2,901 lbs (1,316kg)
Motor 1.0HP 110V/60Hz or 2.0HP 220V/60Hz

Alignment lift PRO-12A Diagram

Amgo Warranty 5-3-2

Manual

Amgo PRO-12A Manual

Amgo PRO-12A Installation Instruction
