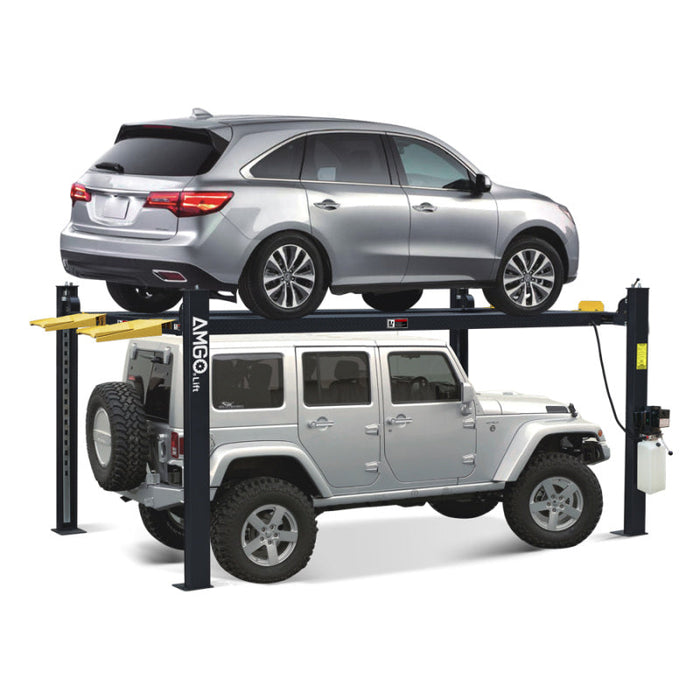

The AMGO 409-HP Commercial Grade Four Post Parking Lift is designed for cars, vans, and light trucks. It shares similarities with AMGO's 408-P and 409-P models but comes with some upgrades. It's longer, wider, faster, and more powerful than the 408-P. Perfect for commercial garages aiming to save space and boost performance. No need for a special foundation or complicated installation – it's about the size of a regular parking space. The AMGO 409-HP stands out as one of the best commercial lifts globally, offering top-notch features for businesses looking to optimize their space and efficiency.
Features
- 9,000lbs lifting capacity
- High lifting rise: 82”
- AMGO exclusive hidden safety locks and manual single-point lock release
- Multi safety locks in each column
- Adjustable lock ladder
- Automatic safety locks combined with redundant anti-fall devices
- Double-S shaped columns for increased strength
- Non-slip platform
- Standard configuration with 4 wheel stops which is more safe
- Flexible Design: power side column can be installed at any corner
- Designed portable,it can be moved easily by using the optional caster kits
- 220V or 110V single phase power unit
- AMGO 5-3-2 Warranty
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493
Specifications
| Model |
409-HP |
| Lifting Capacity |
9,000lbs |
| Lifting Time |
122s(110V) 46s(220V) |
| A: Overall Length (Inc.Ramps) |
234 1/2″ (5957mm) |
| B: Overall Length (No.Ramps) |
200 3/4″ (5100mm) |
| C: Overall Width |
126 1/4″ (3206mm) |
| D: Width Between Columns |
112 5/8″ (2860mm) |
| E: Max. Lifting Height |
87 3/4″ (2227mm) |
| F: Overall Height |
96 5/8″ (2455mm) |
| G: Minimum Height |
6 1/8″(155mm) |
| H: Max.Underneath Height |
83″ (2107mm) |
| I: Drive-Thru Clearance |
98 1/4″ (2496mm) |
| J: Width Between Runways |
42 3/8″ (1077mm) |
| K: Outside Edge of Runways |
82 3/8″ (2093mm) |
| Gross Weight |
1,993lbs (904kg) |
| Motor |
1.0HP 110V/60Hz or 2.0HP 220V/60Hz |
Manual
Amgo 409-HP Manual
Amgo 409-HP Installation Instruction
